Port your Mac app to Apple silicon

For an in-depth overview of everything Apple Silicon, check the official Apple Silicon documentation.

What the transition to Apple Silicon means

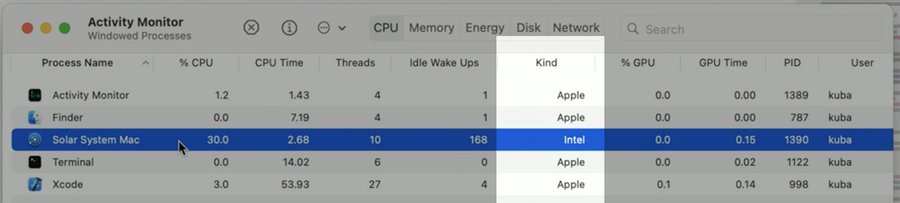

In macOS 11, when running on Apple silicon, the CPU tab of the Activity Monitor.app has a new Kind column showing which architecture each process runs on (”Apple” means it’s running natively in Apple Silicon, Intel when the process is being translated via Rosetta):

Universal Mach-O binaries

Your apps and most executable code in macOS, are stored in a file format called Mach-O.

These files can either be targeting a single CPU architecture or they can be universal (a.k.a. support multiple CPU architectures).

To examine a file on disk, you can use the lipo command.

Rosetta translation

• the entire process is either native or translated (cannot mix).

• Kernel extensions, AVX vector instructions, and virtualization are not supported.

Building Universal Binaries

• endianness of arm64 is the same as x86

• if your (macOS) app shares code with an iOS app, that code is guarantee to work in Apple Silicon

• Xcode 12 supports building Universal Binaries on all mac architectures (both on Intel and Apple Silicon macs)

Determining CPU page size

• Native page size on Intel is 4 kB, on Apple Silicon it’s 16 kB: therefore the PAGE_SIZE macro is no longer a constant. Use:

  • PAGE_MAX_SIZE for a compile-time upper bound

  • vm_page_size to read the actual value at runtime

• Rosetta provides 4 KB pages when translating Intel processes

#if for platforms and CPU architectures

• macOS: #if os(macOS)

• intel: #if arch(x86_64)

• ARM64: #if arch(arm64)

• Simulator: #if targetEnvironment(simulator)

• iOS device: #if os(iOS) && !targetEnvironment(simulator)

Precompiled binaries

When building for Apple Silicon you might encounter linker warnings (that later translate in some cryptic errors) similar to: ignoring file when building for macOS-arm64, but attempting to link with file built for macOS-x86_64..

This happens when we have a binary dependency that hasn’t been built as universal yet, the only way to fix this is to:

• remove such dependency (even just temporarily)

• wait for the dependency to provide an universal binary

What you can do now: search for precompiled binaries in your project (.a, .dylib, .framework, .xcframework) and reach out their vendors if the binary is not universal (use lipo --info path/to/binary to inspect them)

Building Universal Binaries steps

1. Build your app as an Intel app in Xcode 12 first (make sure it builds fine with no warnings)

2. Build your app natively for Apple Silicon

• fix non-portable code issues (see #if chapter above)

• fix link-time issues (see Precompiled binaries chapter above)

Running, Testing, Debugging

• When running tests, they will run only in the selected architecture

• The default architecture is the one the mac machine is running on

• Always run your tests on both architectures

Asymmetric CPU cores on Apple Silicon

• Apple Silicon Macs have two types of cores:

  • High-performance (P Cores)

  • Energy-efficient (E Cores)

• All can be active at the same time for highly-parallel workloads

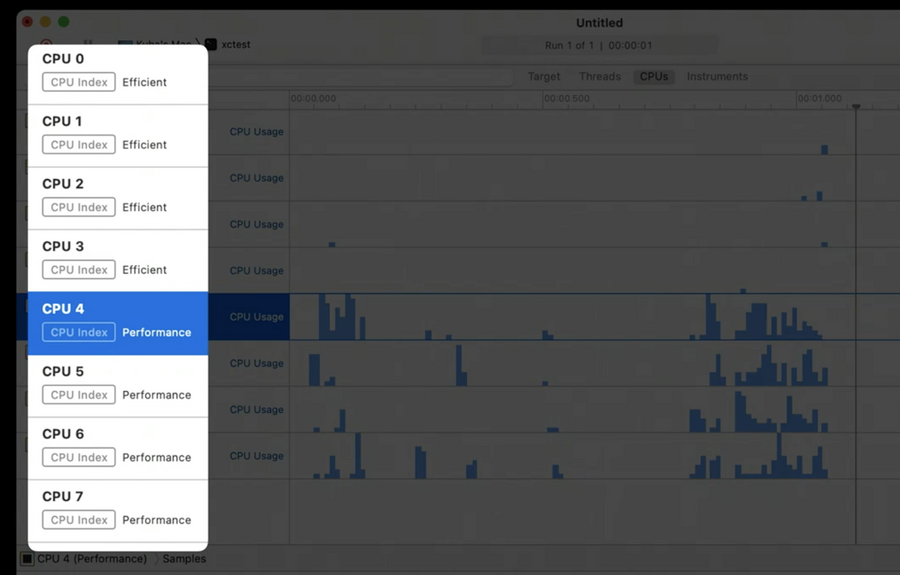

In Instruments you can see which core is which by the associated label:

Plug-ins

• Plug-ins are a way to dynamically load and execute code.

• Both native and translated plug-ins are supported.

• If your app is a plug-in host, and if it’s using a custom plug-in loading mechanism, you will need to consider how plug-ins work on Apple Silicon Macs.

If your app supports plug-ins, it will typically discover them at runtime and then load them when needed.

That’s called an in-process plug-in model, and typically the app uses a call to dlopen() or Bundle.load() for this.

Alternatively, the plug-ins can be spawned as new processes, and we call those out-of-process plug-ins. The app and the plug-in process then use some interprocess communication mechanism like XPC. Loading another plug-in typically spawns another process.
