Advances in UICollectionView

Sample Code

Download the sample code to learn more about Modern Collection Views.

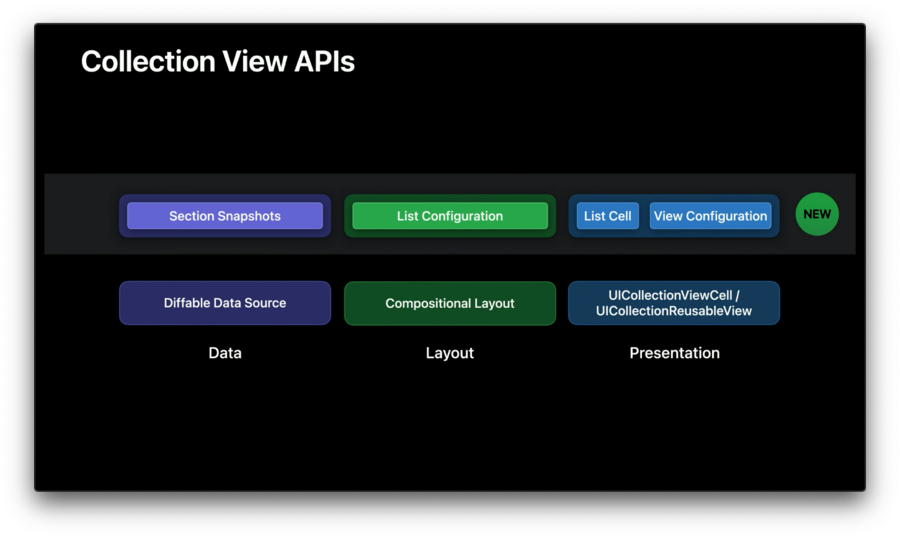

Modern Collection View APIs Overview

Diffable Data Source

Recap

• Introduced in iOS 13.

• Simplifies UI State.

• Automatic animations.

• More to watch session 220 from WWDC 19: Advances in UI Data Sources.

New in iOS 14

Section Snapshots

• Encapsulates the data for a single section in a UICollectionView.

• Allow data sources to be more composable into section-sized chunks of data.

• Can present the same data with different layout in different sections.

• Allow modeling of hierarchical data, which is needed to support rendering outline-style UIs.

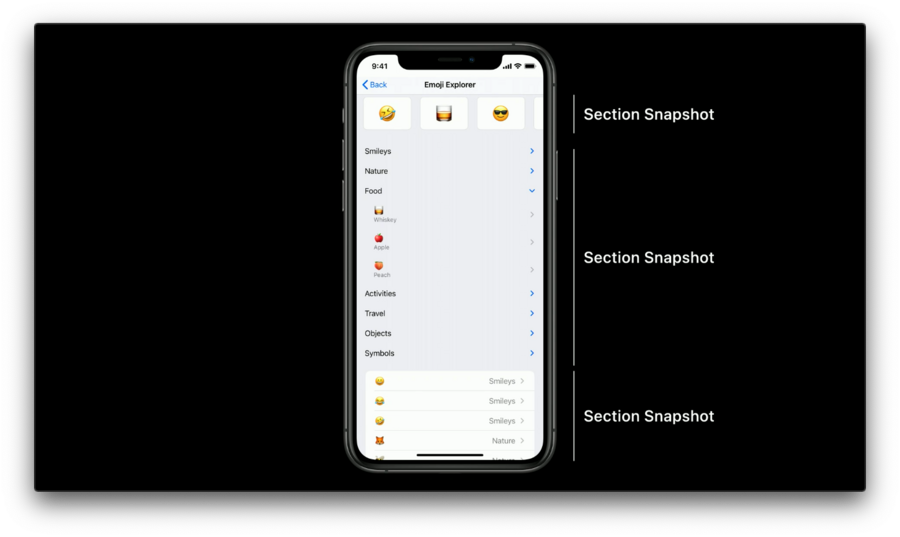

Examples

• Top: Horizontally scrolling section.

• Middle: Outline style section.

• Bottom: List section.

For more refer to the Advances in diffable data sources session.

Compositional Layout

Recap

• Introduced in iOS 13.

• Allows us to build rich, complex layouts by composing smaller, easy-to-reason bits of layout together.

• Describes what we want the layout to look like instead of how the layout ought to work.

• Provides section-specific layouts.

• For more refer to the Advances in Collection View Layout session.

New in iOS 14

Lists

• UITableView-like appearance.

• Rich with features like swipe actions and many common cell layouts.

• Built on top of Compositional Layout.

• New concrete UICollectionViewListCell.

• Header and footer support.

• Sidebar appearance.

Examples

Creating a UICollectionViewLayout where every section in the collection view is a list with an inset grouped appearance.

let configuration = UICollectionLayoutListConfiguration(appearance: .insetGrouped)
let layout = UICollectionViewCompositionalLayout.list(using: configuration)

More to watch session 10026: Lists in UICollectionView.

Modern Cells

Cell Registrations

• Brand new way to configure cells.

• Simple, re-usable way to set up a cell from a view model.

• Eliminates the extra step of registering a cell class or nib to associate it with a re-use identifier.

• Uses a generic registration type, which incorporates a configuration closure for setting up a new cell from a view model.

let reg = UICollectionView.CellRegistration<MyCell, ViewModel> { cell, indexPath, model in
   // configure cell content
}

let dataSource = UICollectionViewDiffableDataSource<S,I>(collectionView: collectionView) {
   collectionView, indexPath, item -> UICollectionViewCell in
   return collectionView.dequeueConfiguredReusableCell(using: reg, for: indexPath, item: item)
}

Cell Content Configurations

• Similar to UITableViewCell.

• To be used as any cell or even a generic UI view.

• Flexible.

• Lightweight.

var contentConfiguration = UIListContentConfiguration.cell()
contentConfiguration.image = UIImage(systemNamed:"hammer")
contentConfiguration.text = "Ready. Set. Code"
cell.contentConfiguration = contentConfiguration

Background Configurations

• Similar to content configurations, but applied to any cell’s background with the ability to adjust properties such as color, border styles, and more.

cell.backgroundConfiguration = UIBackgroundConfiguration.clear()

More to watch session 10027: Modern cell configuration.
