Advances in diffable data sources

Sample Code

Download the sample code to learn more about Modern Collection Views.

Diffable Data Source

Recap

• Introduced in iOS 13.

• Simplifies UI State.

• Automatic animations.

• No more batch updates.

• For more, refer to the Advances in UI Data Sources session.

Section Snapshots

• Encapsulate the data for a single section in a UICollectionView.

• Allow data sources to be more composable into section-sized chunks of data.

• Can present the same data with different layout in different sections.

• Allow modeling of hierarchical data, which is needed to support rendering outline-style UIs.

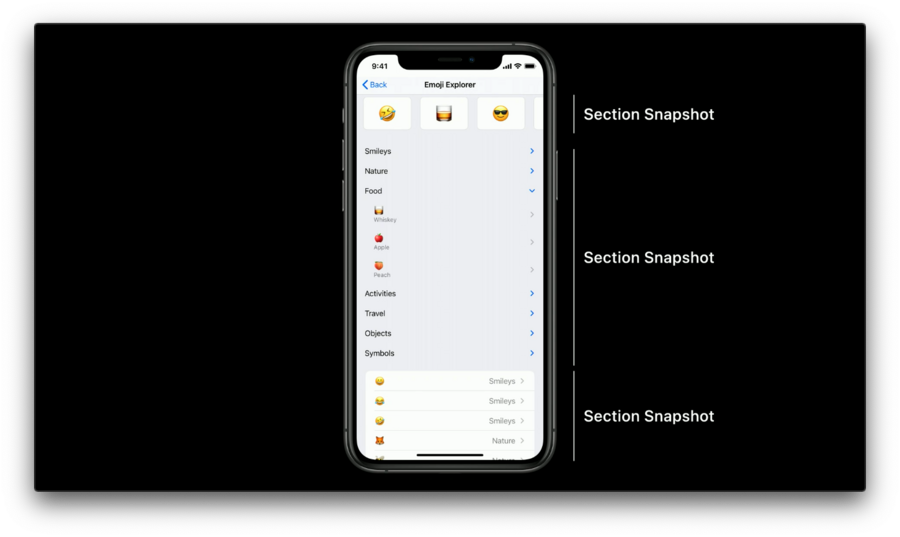

Examples

• Top: Horizontally scrolling section.

• Middle: Outline style section.

• Bottom: List section.

It composes Diffable Data Source from three distinct section snapshots, each representing a single section’s content.

APIs

• Use append(:parent:) API to add content into a section snapshot.

• The optional parent parameter allows us to create parent-child relationships in the section snapshot.

// UICollectionViewDiffableDataSource additions for iOS 14

extension UICollectionViewDiffableDataSource<Item, Section> {

    func apply(_ snapshot: NSDiffableDataSourceSectionSnapshot<Item>,
               to section: Section,
               animatingDifferences: Bool = true,
               completion: (() -> Void)? = nil)

    func snapshot(for section: Section) ->
                  NSDiffableDataSourceSectionSnapshot<Item>
}

Code example:

// Example of using snapshots and section snapshots together

func update(animated: Bool=true) {

   // Add our sections in a specific order
   let sections: [Section] = [.recent, .top, .suggested]
   var snapshot = NSDiffableDataSourceSnapshot<Section, Item>()
   snapshot.appendSections(sections)
   dataSource.apply(snapshot, animatingDifferences: animated)

   // update each section's data via section snapshots in the existing position
   for section in sections {
      let sectionItems = items(for: section)
      var sectionSnapshot = NSDiffableDataSourceSectionSnapshot<Item>()
      sectionSnapshot.append(sectionItems)
      dataSource.apply(sectionSnapshot, to: section, animatingDifferences:animated)
   }
}

Child snapshots

let childSnapshot = sectionSnapshot.snapshot(for: parent, includingParent: false)

Expanding and Collapsing Items

• Expansion state is persisted.

• Expansion state is managed as part of a section snapshot’s state.

• Call apply(_:to) to commit changes.

• Automatic animations.

struct NSDiffableDataSourceSectionSnapshot<Item: Hashable> {
   func expand(_ items: [Item])
   func collapse(_ items: [Item])
   func isExpanded(_ item: Item) -> Bool
}

Section snapshot handlers

To be notified about expansion state changes caused by these user interactions.

// Section Snapshot Handlers: handling user interactions for expand / collapse state changes

extension UICollectionViewDiffableDataSource {

  struct SectionSnapshotHandlers<Item> {
    var shouldExpandItem: ((Item) -> Bool)?
    var willExpandItem: ((Item) -> Void)?

    var shouldCollapseItem: ((Item) -> Bool)?
    var willCollapseItem: ((Item) -> Void)?

    var snapshotForExpandingParent: ((Item, NSDiffableDataSourceSectionSnapshot<Item>) -> NSDiffableDataSourceSectionSnapshot<Item>)?
  }

  var sectionSnapshotHandlers: SectionSnapshotHandlers<Item>

}

• SectionSnapshotHandlers is a generic struct which contains five optional closures.

• snapshotForExpandingParent is used for lazy loading when the content is expensive.

Reordering Support

• Automatic snapshot updates.

• Transactions.

Reordering Handlers

• Used to be notified when a user-initiated reordering interaction took place.

• Once notified, it can persist the new visual order to the application’s backing store, which is its final source of truth.

// Diffable Data Source Reordering Handlers

extension UICollectionViewDiffableDataSource {

  struct ReorderingHandlers {
    var canReorderItem: ((Item) -> Bool)?
    var willReorder: ((NSDiffableDataSourceTransaction<Section, Item>) -> Void)?
    var didReorder: ((NSDiffableDataSourceTransaction<Section, Item>) -> Void)?
  }

  var reorderingHandlers: ReorderingHandlers
}

• Automatic reordering.

• When the user is done with the reordering interaction, the didReorder closure is called.

• Must provide both the canReorderItem and didReorder closure to enable the reordering feature.

Reordering Transactions

A transaction that describes the changes after reordering the items in the view.

struct NSDiffableDataSourceTransaction<Section, Item> {
   var initialSnapshot: NSDiffableDataSourceSnapshot<Section, Item> { get }
   var finalSnapshot: NSDiffableDataSourceSnapshot<Section, Item> { get }
   var difference: CollectionDifference<Item> { get }
   var sectionTransactions: [NSDiffableDataSourceSectionTransaction<Section, Item>] { get }
}

• initialSnapshot is the state of the Diffable Data Source before the update is applied.

• finalSnapshot is the state of the Diffable Data Source after the update is applied.

• Apply the data directly to difference, if use a data type such as Array for the source of truth.

• sectionTransactions provides per-section details about all the sections involved in this reordering update.

Section Transactions

struct NSDiffableDataSourceSectionTransaction<Section, Item> {
   var sectionIdentifier: Section { get }
   var initialSnapshot: NSDiffableDataSourceSectionSnapshot<Item> { get }
   var finalSnapshot: NSDiffableDataSourceSectionSnapshot<Item> { get }
   var difference: CollectionDifference<Item> { get }
}

• sectionIdentifier for inspecting which section this sectionTransaction has been applied to.

Example

dataSource.reorderingHandlers.didReorder = { [weak self] transaction in
   guard let self = self else { return }

   if let updateBackingStore = self.backingStore.applying(transaction.difference) {
      self.backingStore = updatedBackingStore
   }
}
