Build with iOS pickers, menus and actions

UIControls New Design and Appearance

• UISlider and UIProgressView have now more consistent UI across all platforms

• UIActivityIndicatorView and UIPickerView have new designs as well

UIPageControl

• UIPageControl can now be scrubbed and scrolled when the number of pages doesn’t fit the available space.

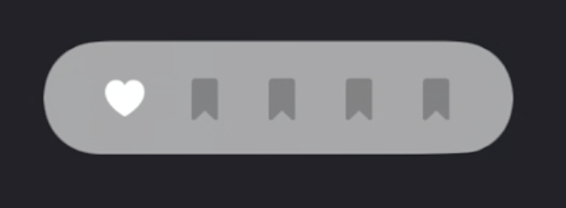

• UIPageControl components such as indicators can now be customized via the following API:

let pageControl = UIPageControl()
pageControl.numberOfPages = 5

pageControl.backgroundStyle = .prominent

pageControl.preferredIndicatorImage =
    UIImage(systemName: "bookmark.fill")

pageControl.setIndicatorImage(
    UIImage(systemName: "heart.fill"), forPage: 0)

UIColorPickerViewController

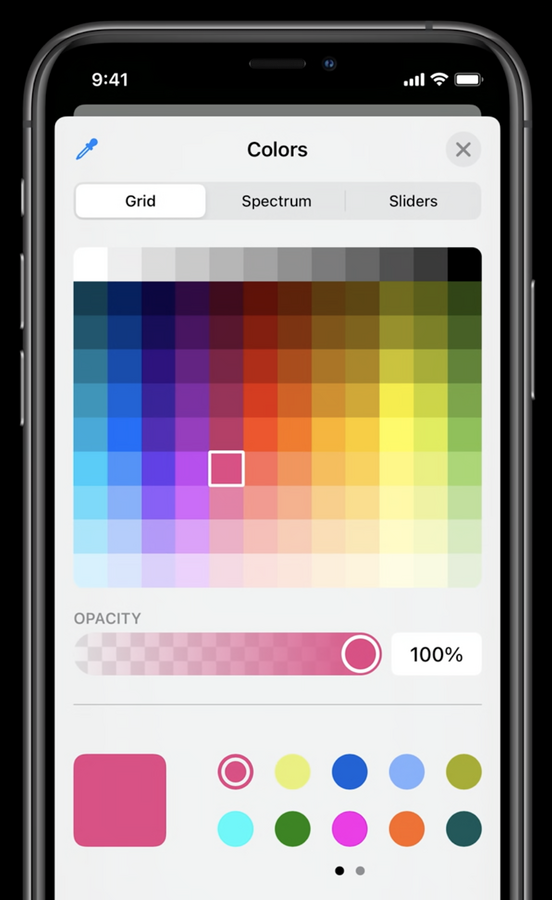

• New UIColorPickerViewController, presented as a sheet and featuring eyedropper, favorites, and hexadecimal specification

var color = UIColor.blue
var colorPicker = UIColorPickerViewController()

func pickColor() {
    colorPicker.supportsAlpha = true
    colorPicker.selectedColor = color
    self.present(
        colorPicker,
        animated: true,
        completion: nil
    )
}

func colorPickerViewControllerDidSelectColor(
    _ viewController: UIColorPickerViewController
) {
    color = viewController.selectedColor
}

func colorPickerViewControllerDidFinish(
    _ viewController: UIColorPickerViewController
) {
    // Do nothing
}

UIDatePicker

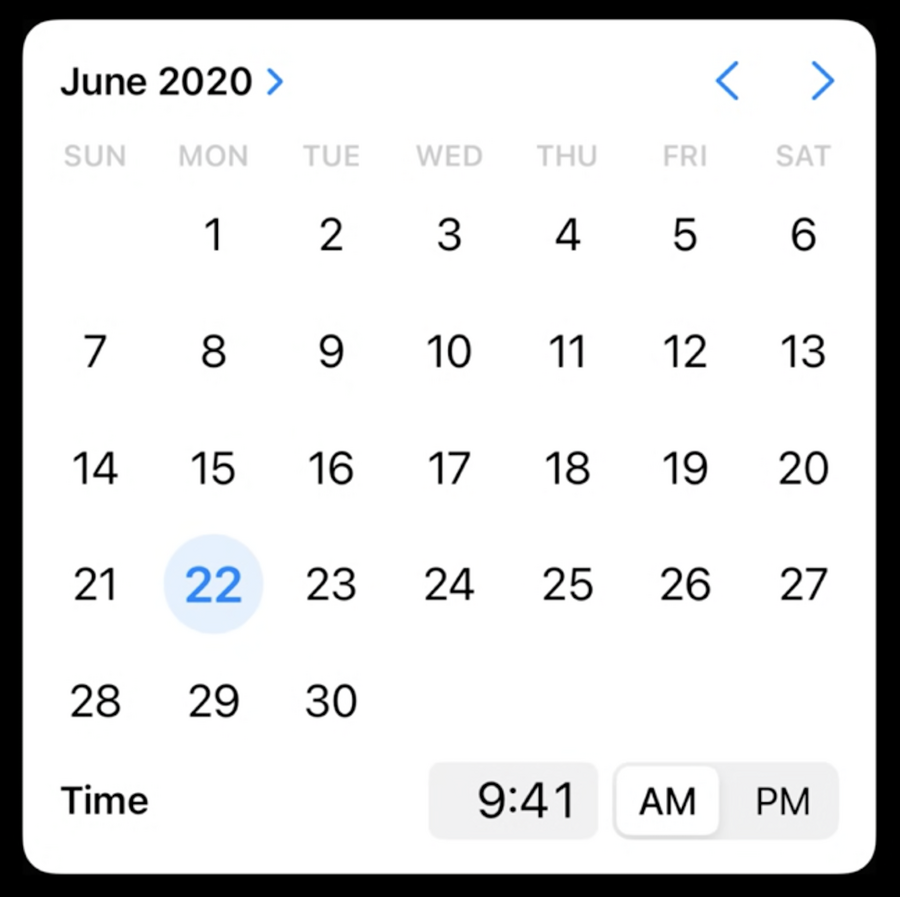

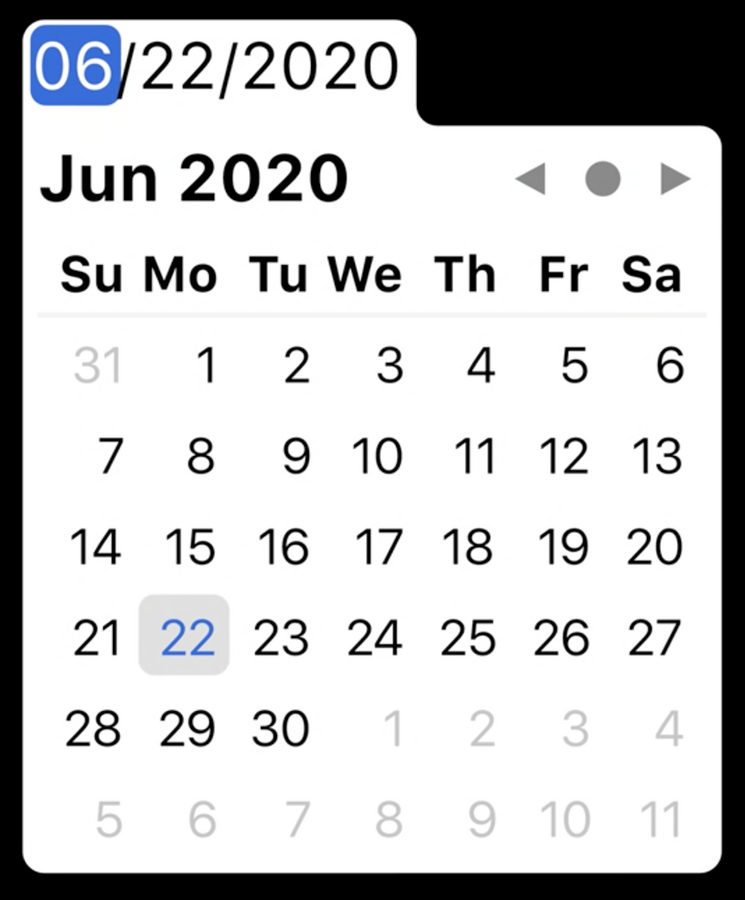

• UIDatePicker now offers a compact style, and we can optionally limit selection to just a date or time.

let datePicker = UIDatePicker()
datePicker.date = Date(
    timeIntervalSinceReferenceDate: timeInterval
)

datePicker.preferredDatePickerStyle = .compact

datePicker.calendar = Calendar(identifier: .japanese)
datePicker.datePickerMode = .date

datePicker.addTarget(
    self,
    action: #selector(dateSet),
    for: .valueChanged
)

iOS / iPadOS	macOS

UIMenu

• In iOS, we can now add UIMenus to UIButtons and UIBarButtonItems displayed to the user on a long press:

button.menu = UIMenu(...)

barButtonItem.menu = UIMenu(...)

• We can also adjust the behavior of menus to show immediately on touch down instead of waiting for a long press by:

  • button.showsMenuAsPrimaryAction = true for UIButton

  • Not providing a primary action for UIBarButtonItem

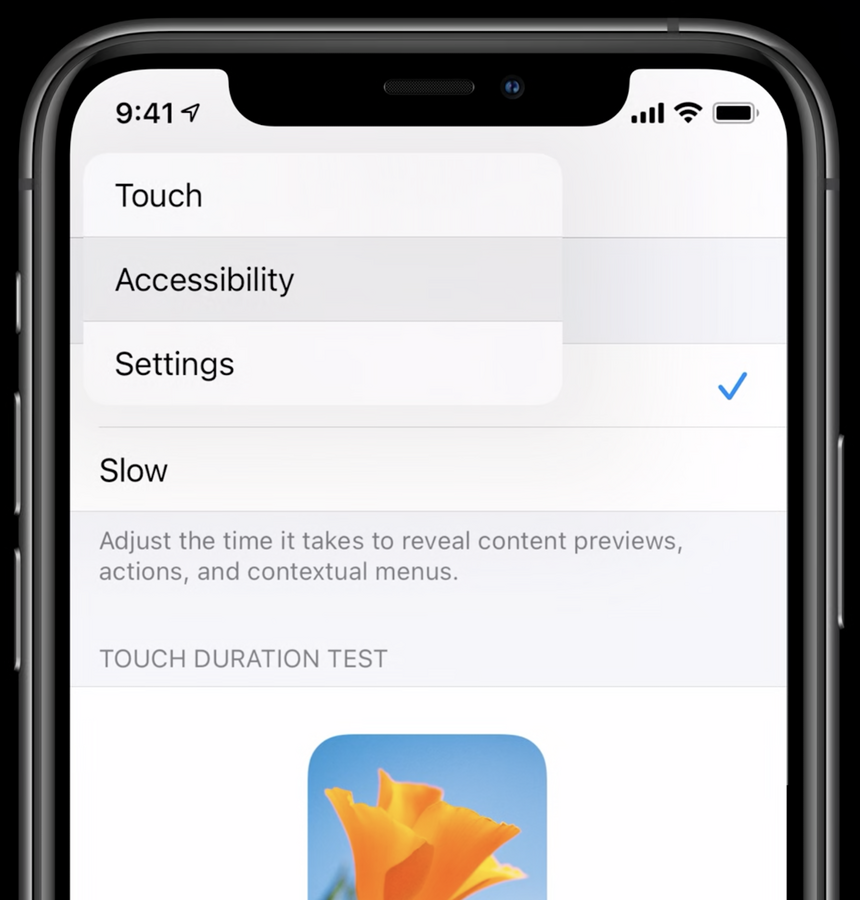

• UINavigationBar back button now gets a default menu as well (to let the user jumps back to a previous controller quickly). Menu titles are automatically chosen, if we’re currently using a custom title view in our controller, consider setting:

  • .backBarButtonItem.title

  • .backButtonTitle

  • .title

• We can access UIControl interactions and their properties, and we can subclass UIControl and provide a custom implementation for our custom menu based UIs

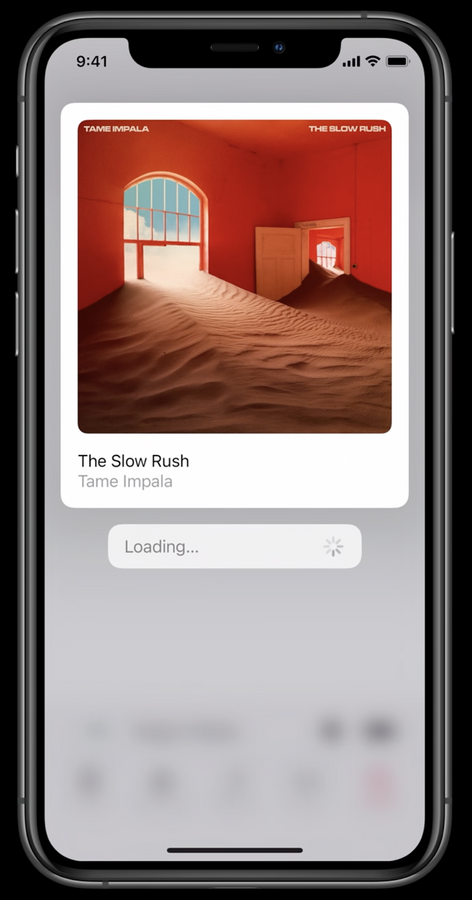

• We can use UIDeferredMenuElement to add the ability to load menu items asynchronously while showing a standard loading UI.

UIAction

• UIAction can now be directly passed to UIButton, UIBarButtonItem, and UISegmentedControl initializers.

• UIButton initializer init(type:primaryAction:) defaults the UIButton type to .system, which sets the button’s title and image to that of the primary action (primaryAction.title and primaryAction.image)

• We can now create UISegmentedControl as easy as:

let control = UISegmentedControl(frame: .zero, actions: Colors.allCases.map { color in
	UIAction(title: color.description) { [unowned imageView] _ in
		imageView.tintColor = color.color()
	}
})
