Learn about Apple Immersive Video technologies

Prerequisites

• Explore video experiences for visionOS

Apple Immersive Video

• Highest-quality immersive experience on Apple Vision Pro, requires specific cameras (such as Blackmagic’s)

• macOS & visionOS 26 can read/write immersive metadata, with built-in previewing capabilities

Metadata

• VenueDescriptor type in the ImmersiveMediaSupport framework contains a combination of all cameras used

• Stored as Apple Immersive Media Embedded (AIME) data

• VenueDescriptor consists of cameras, the ImmersiveCameraViewModel, ability to add/remove cameras

• It also holds the aimeData property and has a save(to:) method

• Camera calibrations include: per-shot edge blend, custom backdrops, calibrated lenses, camera origin, and more

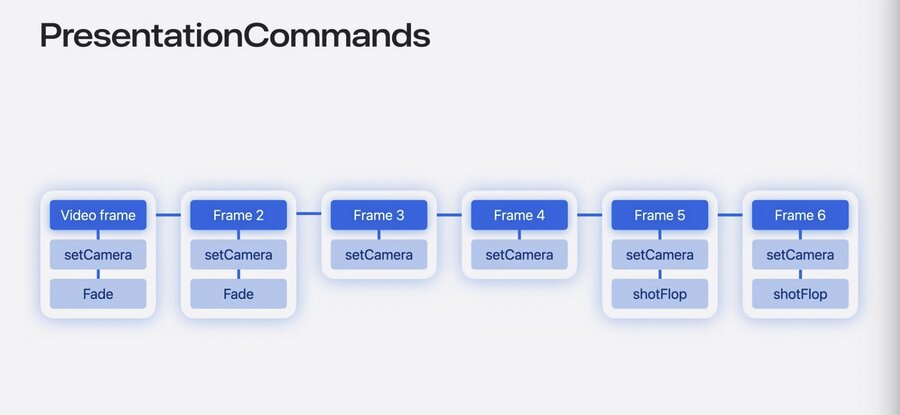

• Dynamic metadata timed per frame with video, represented as PresentationCommands muxed into file

• Per-frame camera projection, video frame fade, backdrop fade, horizontal shot flop

Read

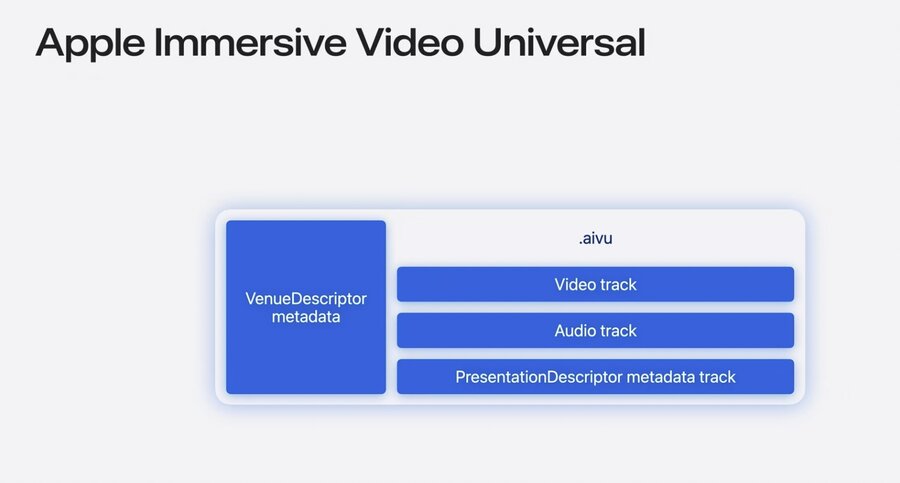

• New Apple Immersive Video Universal (AIVU) file: .mov container with commands & descriptor

• Can be played in Files app in VisionOS, also possible in your own app as file / HLS stream:

• Learn more: Support immersive video playback in visionOS apps

• New APIs in AVFoundation like .quicktimeMetadataAIMEData in metadata to load descriptor

• Filter by the .quickTimeMetdataPresentationImmersiveMedia identifier

• Learn more here: AVPlayerItemMetadataOutput

Write

• You must use the projection kind AppleImmersiveVideo

• Write VenueDescriptor as AVMetadataItem and…

• Write PresentationCommand as AVTimedMetadataGroup using AVAssetWriter

• Use AIVUValidator.validate(url:) to check if a valid file was created

• Learn more in this sample project

Author note: Check out the video for full code samples.

Publish

• Recommended resolution is 4320x4320 @ 90 FPS

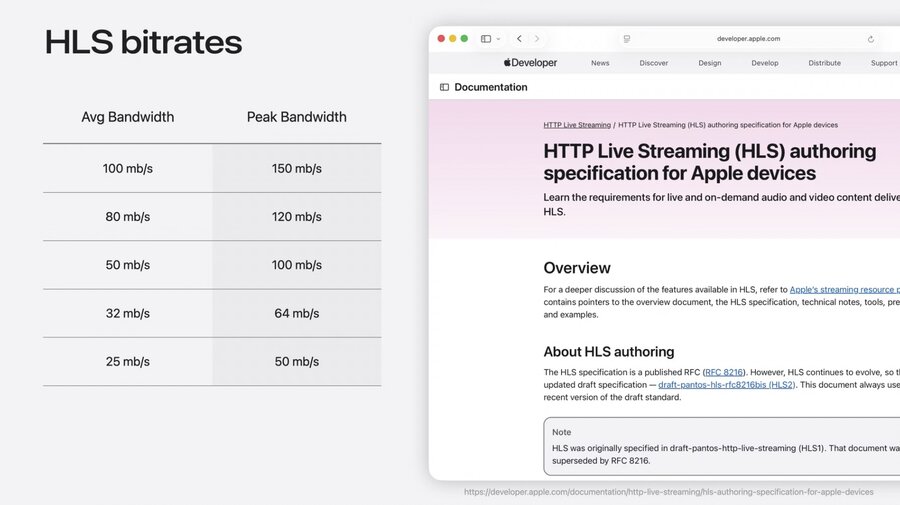

• HLS bitrate tiers: Min 25 Mbit to Max 100 Mbit on average, 50 Mbit to 150 Mbit peak

• Inside HLS playlist you need the .aime metadata file for AVP to play correctly

• EXT-X-VERSION 12 or higher required, venue-description file, content-type, layout

Preview

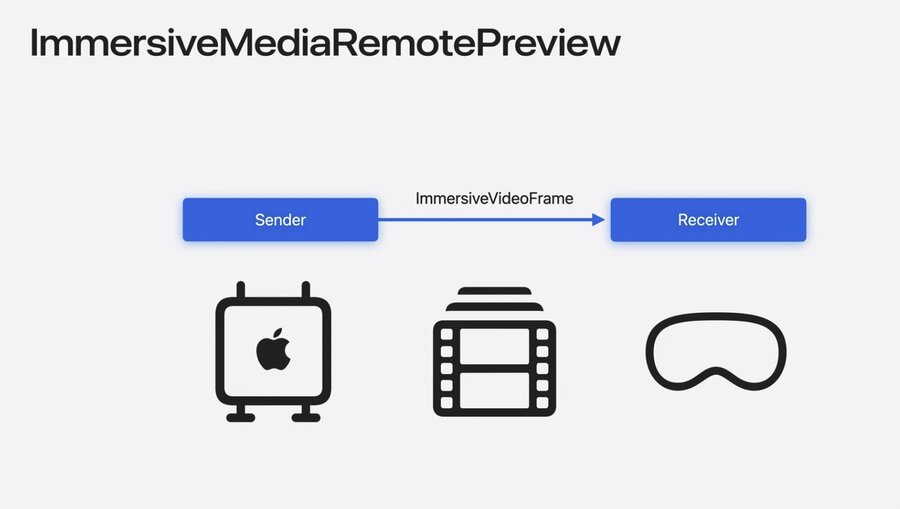

• Use ImmersiveVideoFrame to send from editing Mac to Vision Pro for previewing

• One or multiple receivers possible, live previewing with custom compositor

• Learn more: Immersive Media Support

Spatial Audio

Author note: Skipped this section of the video.
