What’s new in SF Symbols 7

Key Takeaways

• ✍️ New draw animation along defined path, inspired by handwriting

• 🪄 Magic replace recognizes more shapes

• 🌈 Apply gradients to any Symbol

• 🎞️ Use SF Symbol app to add draw animation for custom Symbols

Introduction

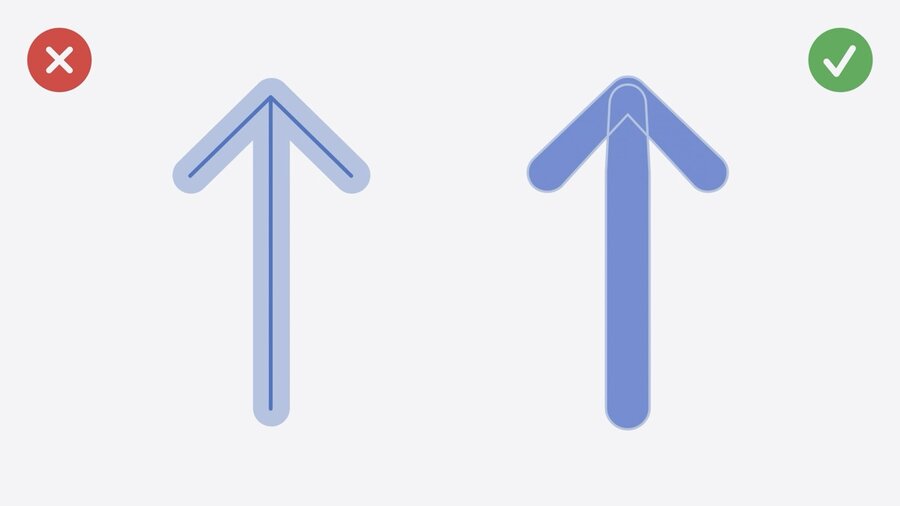

• Symbols are created using outlined vector shapes, not just paths with outlines.

• Shapes may be constructed from two different paths, oriented in opposite direction.

• All new symbols and animations can be previewed and customized in updated SF Symbols app.

Draw Animation

• Animation along defined path, inspired by handwriting.

• Two different presets:

  • Draw On: shows symbol

  • Draw Off: hides symbol

• Draw off animation can be reversed.

• Default animation is by layer.

  • Also supports whole symbol or individually.

• Animation direction is customizable.

• Complex shapes like arrow heads traveling with path possible.

• Variable draw allows symbols to animate progress, like progress bar or temperature.

  • At render time you need to choose between variable color or variable draw.

Magic Replace Animation

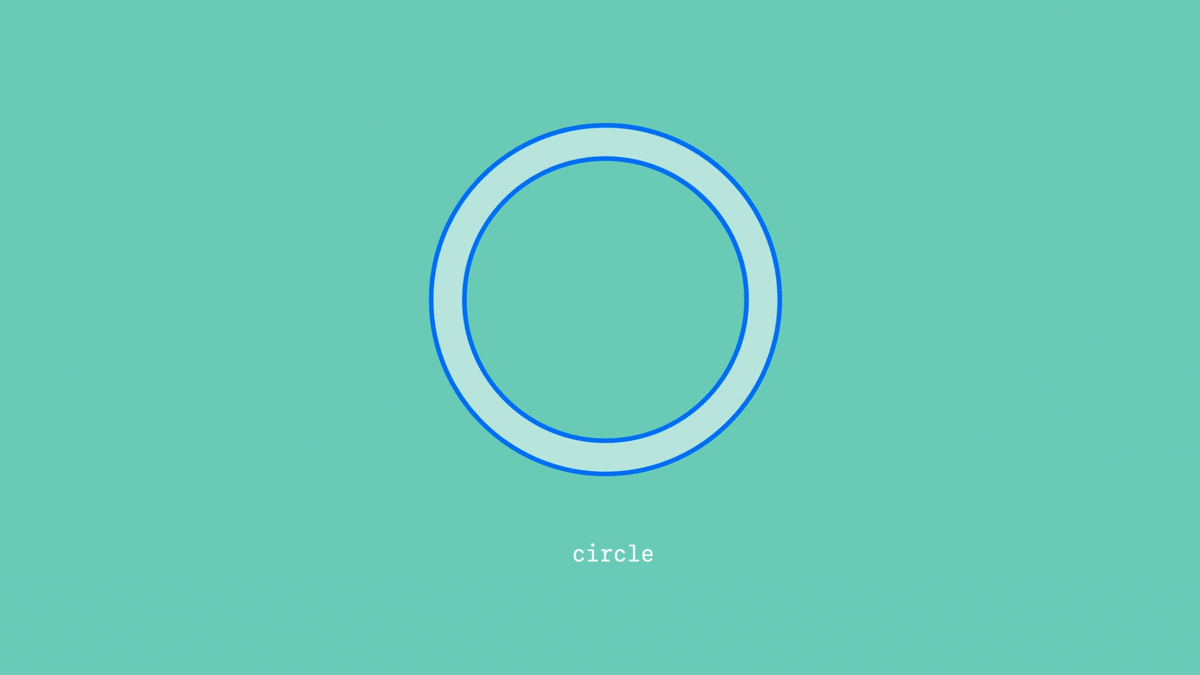

• Now recognizes matching enclosures aka shapes like circles.

• Can be combined with draw animation.

Gradients

• Generates gradient from single source color.

  • Both for system and custom colors.

• Gets applied across all rendering modes.

Draw for Custom Symbols

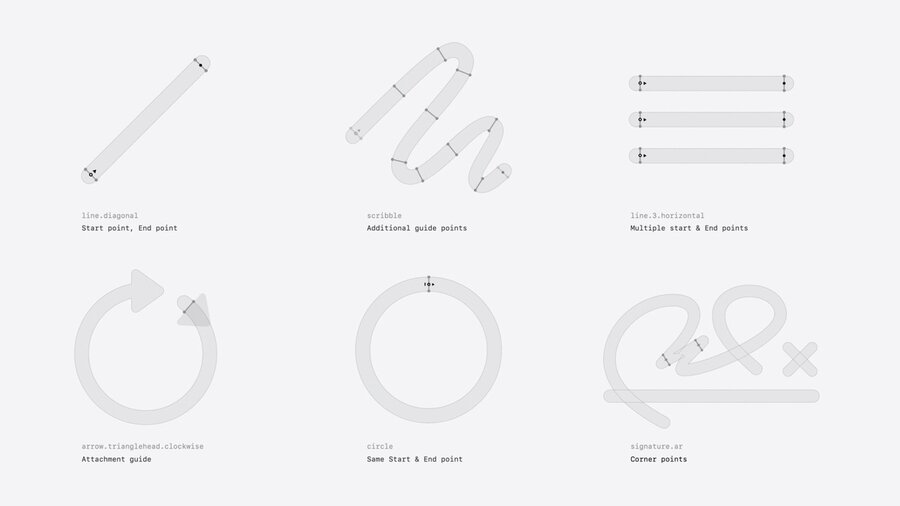

• Draw animation relies on set of at least 2 guide points.

  • Start point: hollow dot

  • End point: filled dot

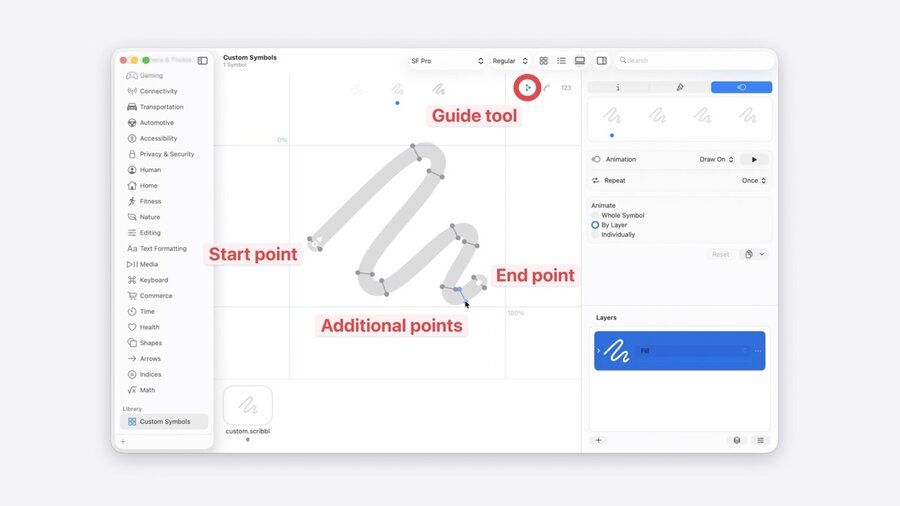

• Show Draw toolbar via selecting “Draw On” or “Draw Off” in animation tab (in gallery view).

• Enter guide point mode via leftmost button in Draw toolbar.

• Click on Symbols paths to define guide points.

  • Use context menu to change point type.

• Add additional guide points for complex shapes like turning points.

• Drag guide points to edit and flip animation direction.

• Two-path shapes (e.g. circle) automatically get combined start and end point.

  • Animate clockwise by default.

  • Use context menu to change direction to counterclockwise.

Multiple Paths & Bidirectionally

• Each path has same set of rules (at least 2 guides).

• Select each layer and annotate it separately.

• For bidirectional animation place start point between two end points.

  • System will recognize it automatically.

  • Only available for single path shapes.

• Enable snapping (2nd button in Draw toolbar) to ensure start points aligning across multiple layers.

End Caps

• Rounded end cap by default.

• Use context menu on guide points to change end cap to “adaptive”.

  • Only available in single draw direction.

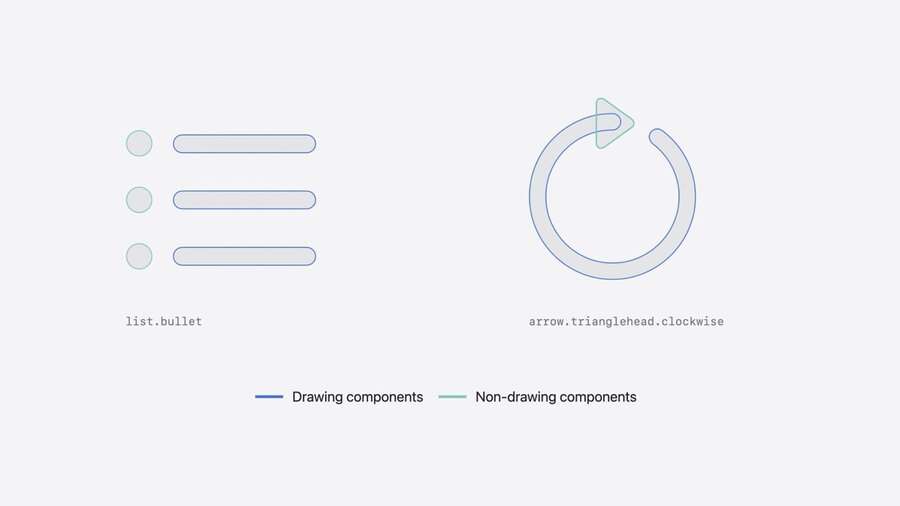

Non-Drawing Components

• Drag and drop non-drawing shape (like arrow head) on guide to attach it.

• Indicates where shape will appear from.

• To remove drag and drop it on canvas.

Sharp Corner Points

• For sharp corners use “Corner Point” to assign both points on same path.

Advanced Options

• Hold option key (⌥) to change location of guide point of one side of path.

• Select subpath in layer list to limit guide points to that path.

Support All Weights

• System interpolates guide points across weights.

• Annotate regular weight first!

• When fixing specific weights make sure the guide points are in correct order.

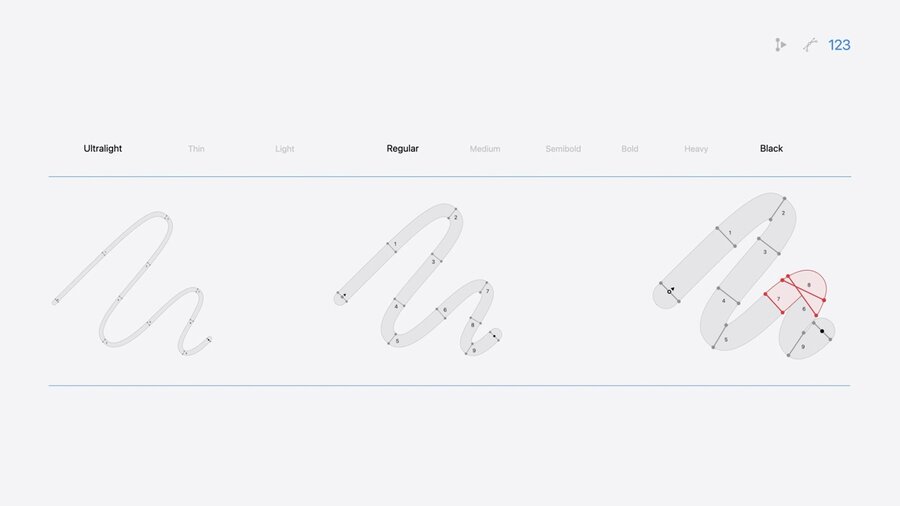

  • Use 3rd button in Toolbar to toggle numbers on/off.

• Drag broken guide points to correct placement in given weight.

Variable Rendering

• Enable variable draw via button in layer list.

• Review each layer and preview the animation.

New APIs

Draw Animations

struct DrawExamples: View {
    @State var isHidden: Bool = false

    var body: some View {
        HStack {
            Image(systemName: "wind")
                .symbolEffect(.drawOn, isActive: isHidden)
        }
    }
}

imageView.addSymbolEffect(.drawOff)

// Sometime later, draw on the symbol
imageView.addSymbolEffect(.drawOn)

Variable Draw

struct VariableDrawExample: View {
    var body: some View {
        VStack {
            Image(systemName: "thermometer.high", variableValue: 0.5)
        }
        .symbolVariableValueMode(.draw)
    }
}

imageView.image = UIImage(systemName: "thermometer.high", variableValue: 0.5)
imageView.preferredSymbolConfiguration = UIImage.SymbolConfiguration(variableValueMode: .draw)

imageView.image = NSImage(systemSymbolName: "thermometer.high", variableValue: 0.5, ...)
imageView.symbolConfiguration = NSImage.SymbolConfiguration(variableValueMode: .draw)

Gradients

struct GradientExample: View {
    var body: some View {
        VStack {
            Image(systemName: "heart.fill")
        }
        .symbolColorRenderingMode(.gradient)
    }
}

view.image = UIImage(systemName: "heart.fill")
view.preferredSymbolConfiguration = UIImage.SymbolConfiguration(colorRenderingMode: .gradient)

view.image = NSImage(systemSymbolName: "heart.fill", accessibilityDescription: "heart symbol")
view.symbolConfiguration = NSImage.SymbolConfiguration(colorRenderingMode: .gradient)
