Get to know App Intents

Key Takeaways

• Bring app functionality out into the system

• App Intents perform actions of your app

• App Shortcuts expose App Intents to Spotlight, Siri, Action Button or Apple Pencil

• App Enums are static values

• App Entities are dynamically fetched values

App Intents ecosystem

App Intents (short Intents) allow you to bring your apps functionality out into the system like:

• Spotlight search results

  • New: Spotlight on Mac can invoke actions directly

• Configurable and interactive Widgets

• Controls in Control Center

• Apple Pencil Pro actions

• Shortcuts App

Core Concepts

• AppIntents describe actions of your app (basically the verb)

• Intents take parameters and return values as native Swift types or custom types (basically the noun)

  • Use AppEnum for constant set of values

  • Use AppEntity for dynamic set of values

• AppShortcuts used to surface App Intents to Siri, Spotlight, etc. (basically the sentence)

Basic Structure of App Intents

struct NavigateIntent: AppIntent {
    // Title shown in Shortcuts app
    static let title: LocalizedStringResource = "Navigate to Landmarks"

    // Opens app before running perform() (optional)
    static let supportedModes: IntentModes = .foreground

    // Action of the Intent
    // Running on @MainActor here because example navigates app
    @MainActor
    func perform() async throws -> some IntentResult {
        Navigator.shared.navigate(to: .landmarks)
        return .result()
    }
}

• Minimum requirements for App Intent are title and perform method

• title is localized name of Intent

• perform() method contains logic returning IntentResult

• IntentResult can be used for Siri’s response or showing snippet

• By default Intents don’t foreground/open app

• Use new supportedModes to open app before intent is run

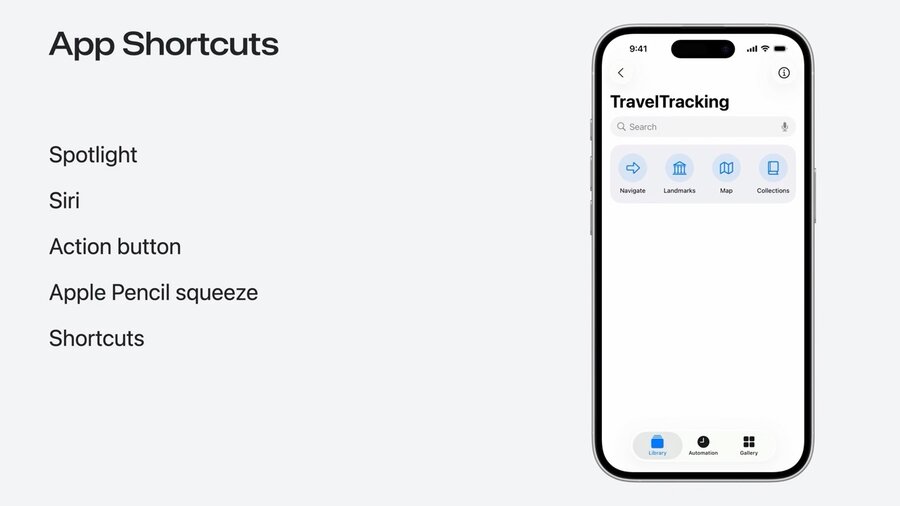

App Shortcuts

• AppShortcuts expose App Intents to Spotlight, Siri, Action Button or Apple Pencil

• Also appear in dedicated section in Shortcuts app

• Defined via AppShortcutsProvider once per app:

struct TravelTrackingAppShortcuts: AppShortcutsProvider {
    static var appShortcuts: [AppShortcut] {
        AppShortcut(
            intent: NavigateIntent(),
            phrases: [
                "Navigate in \(.applicationName)",
                "Navigate to \(\.$navigationOption) in \(.applicationName)"a
            ],
            shortTitle: "Navigate",
            systemImageName: "arrowshape.forward"
        )
    }
}

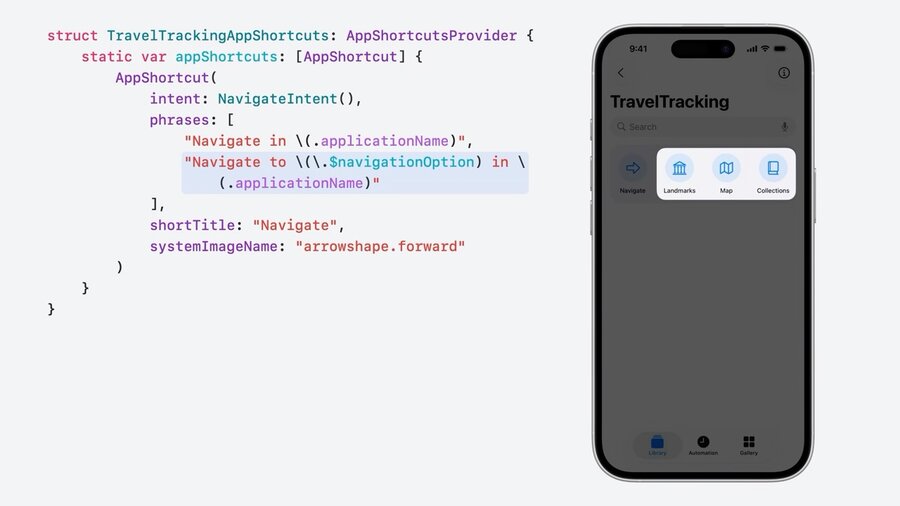

• Each phrase must contain app name placeholder .applicationName

• Can include up to one intent parameter

  • Creates App Shortcut for each value of type

Learn more about App Shortcuts in this talk: Spotlight your app with App Shortcuts

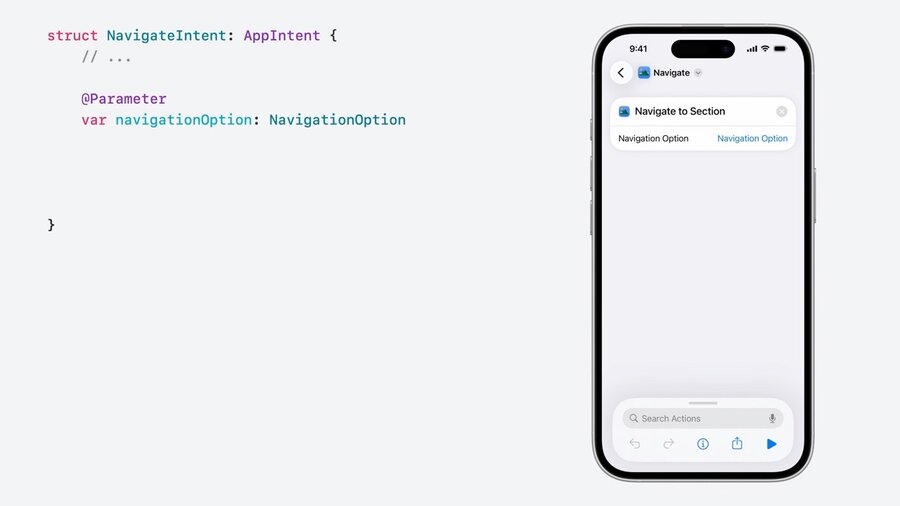

Customize Shortcuts Appearance

struct NavigateIntent: AppIntent {
    // …

    // Sentence like representation in Shortcuts app
    static var parameterSummary: some ParameterSummary {
        Summary("Navigate to \(\.$navigationOption)")
    }

    // Custom label for parameter & title shown when user input is required
    @Parameter(
        title: "Section",
        requestValueDialog: "Which section?"
    )
    var navigationOption: NavigationOption

    @MainActor
    func perform() async throws -> some IntentResult {
        Navigator.shared.navigate(to: navigationOption)
        return .result()
    }
}

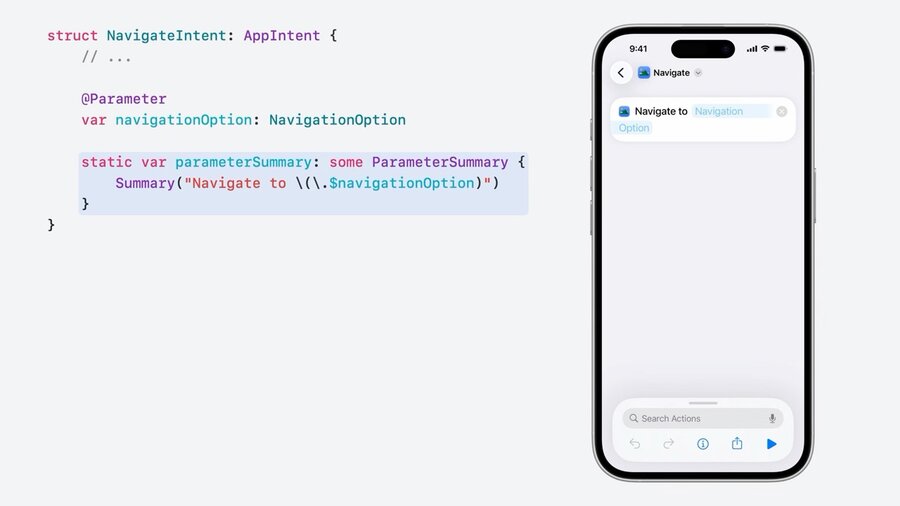

• Use parameterSummary to add sentence like representation for Shortcut

• Accepts parameters for inline customization

• Use title at @Parameter to customize label

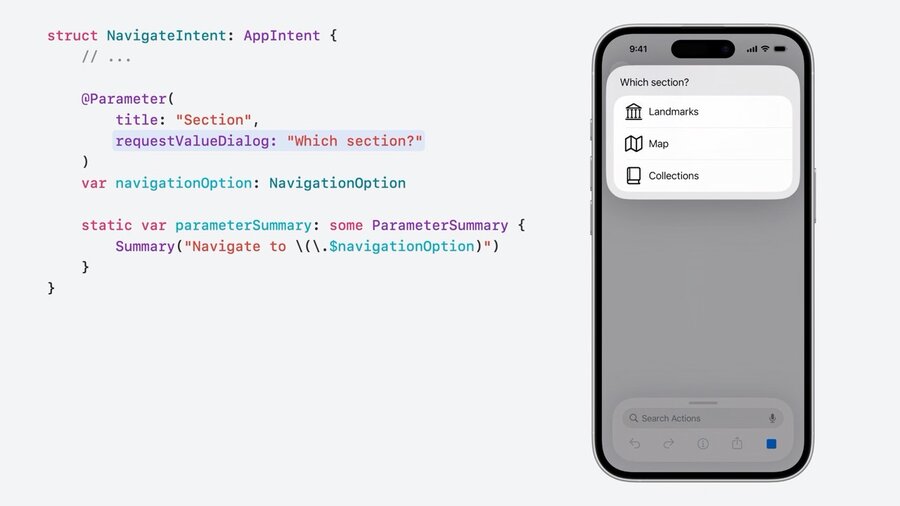

• Use requestValueDialog at @Parameter for custom Siri headline

Static Values via AppEnum

enum NavigationOption: String, AppEnum {
    case landmarks
    case map
    case collections

    // Title of the whole type
    static let typeDisplayRepresentation: TypeDisplayRepresentation = "Navigation Option"

    // Title of each individual case
    static let caseDisplayRepresentations: [NavigationOption: DisplayRepresentation] = [
        .landmarks: "Landmarks",
        .map: "Map",
        .collections: "Collections"
    ]
}

struct NavigateIntent: AppIntent {
    // …

    // Link to AppEnum
    @Parameter var navigationOption: NavigationOption

    @MainActor
    func perform() async throws -> some IntentResult {
        Navigator.shared.navigate(to: navigationOption)
        return .result()
    }
}

• Conform enums to AppEnum to use them in Intents

• Requires to also conform to String

• Requires typeDisplayRepresentation as description of the whole type

• Requires caseDisplayRepresentations as description of individual cases

  • Needs to be constant as it is used at compile time!

• Use @Parameter to offer options to Intents

  • Parameters can be optional or required

• Add icons via DisplayRepresentation:

static let caseDisplayRepresentations = [
    NavigationOption.landmarks: DisplayRepresentation(
        title: "Landmarks",
        image: .init(systemName: "building.columns")
    ),
    NavigationOption.map: DisplayRepresentation(
        title: "Map",
        image: .init(systemName: "map")
    ),
    NavigationOption.collections: DisplayRepresentation(
        title: "Collections",
        image: .init(systemName: "book.closed")
    )
]

Dynamic Values via AppEntity

• Use existing types or create new types as bridge between data model and Intents via AppEntity

• AppEntity must be identifiable with persistent ID for lookup

• Use @Property to define attributes

  • Will be exposed to user

  • Also used for Find and Filter actions

• Use new getter @ComputedProperty to defer to data model directly

• Requires representations of type and instances like App Enums

• Requires defaultQuery to get the dynamic data

struct LandmarkEntity: AppEntity {
    // Required persistent identifier
    var id: Int

    // Attributes exposed to users
    @Property
    var name: String

    @Property
    var description: String

    // Title of the whole type
    static let typeDisplayRepresentation = TypeDisplayRepresentation(name: "Landmark")

    // Title of each individual case
    var displayRepresentation: DisplayRepresentation {
        DisplayRepresentation(title: "\(name)")
    }

    // Handling of retrieving the data
    static let defaultQuery = LandmarkEntityQuery()
}

struct LandmarkEntity: AppEntity {
    // Required persistent identifier
    var id: Int { landmark.id }

    // Attributes exposed to users
    @ComputedProperty
    var name: String { landmark.name }

    @ComputedProperty
    var description: String { landmark.description }

    // The data model
    let landmark: Landmark

    // Title of the whole type
    static let typeDisplayRepresentation = TypeDisplayRepresentation(name: "Landmark")

    // Title of each individual case
    var displayRepresentation: DisplayRepresentation {
        DisplayRepresentation(title: "\(name)")
    }

    // Handling of retrieving the data
    static let defaultQuery = LandmarkEntityQuery()
}

Query the Data

• EntityQuery is used to get the Entities from app

• EntityStringQuery asks for Entity matching a string

• EntityPropertyQuery used for more complex filtering

• Use @Dependency to access local database or other dependencies

  • Register as early as possible in app lifecycle via AppDependencyManager

struct LandmarkEntityQuery: EntityQuery {
    // Optional link to local database
    @Dependency var modelData: ModelData

    func entities(for identifiers: [LandmarkEntity.ID]) async throws -> [LandmarkEntity] {
        modelData
        .landmarks(for: identifiers)
        .map(LandmarkEntity.init)
    }
}

// Register dependency in App
@main
struct LandmarksApp: App {
    init() {
        AppDependencyManager.shared.add { ModelData() }
    }
}

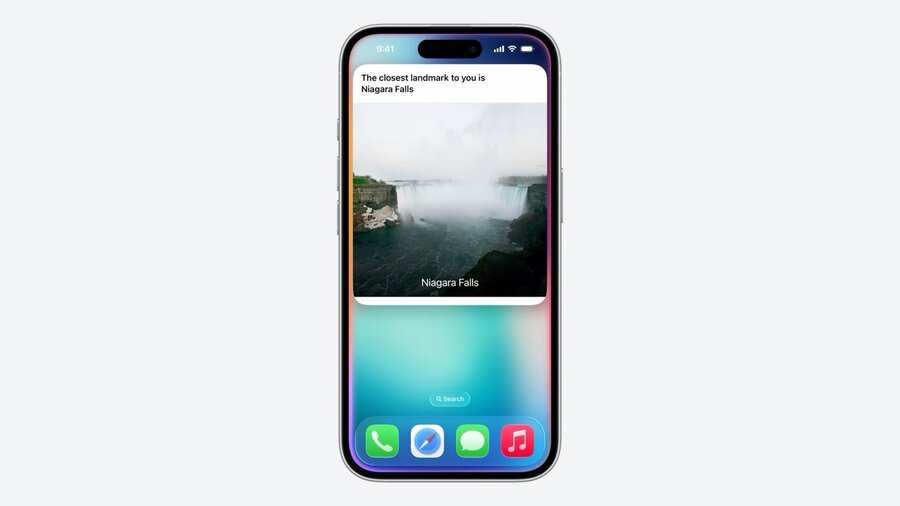

Show Results after Run

struct ClosestLandmarkIntent: AppIntent {
    static let title: LocalizedStringResource = "Find Closest Landmark"

    @Dependency var modelData: ModelData

    @MainActor
    func perform() async throws -> some ReturnsValue<LandmarkEntity> & ProvidesDialog & ShowsSnippetView {

        let landmark = try await modelData.findClosestLandmark()

        return .result(
            value: landmark,
            dialog: "The closest landmark to you is \(landmark.name)",
            view: ClosestLandmarkView(landmark: landmark)
        )
    }
}

• @Dependency can be used in App Intents

• Return all kinds of values for multi step actions via ReturnsValue

  • Possible to return Entities for your own app actions

• Return ProvidesDialog to read out results

• Return ShowsSnippetView for custom results view

Customize Representation of App Entities

• Uses display representation by default

• Use Transferable protocol to customize representation

• Can be used to share data between apps and other actions

extension LandmarkEntity: Transferable {
    static var transferRepresentation: some TransferRepresentation {
        DataRepresentation(exportedContentType: .image) {
            return try $0.imageRepresentationData
        }
    }
}

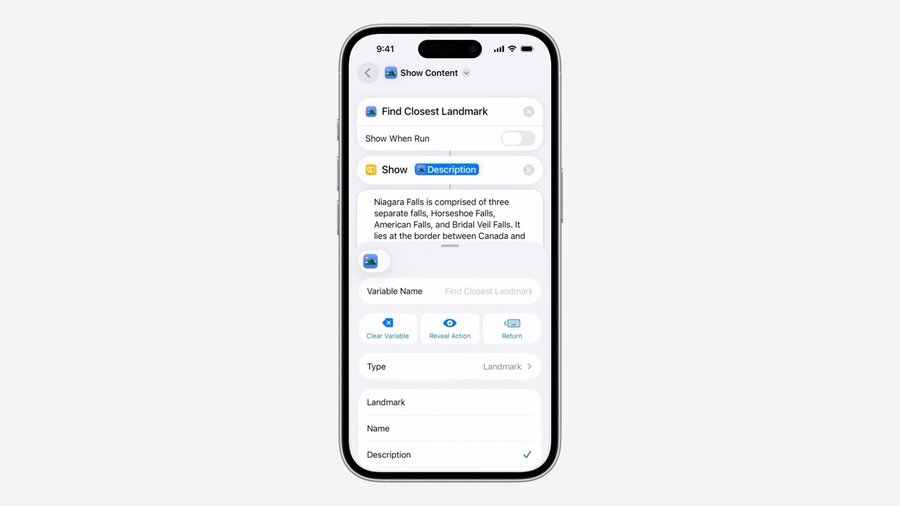

Choose in Shortcuts app between types:

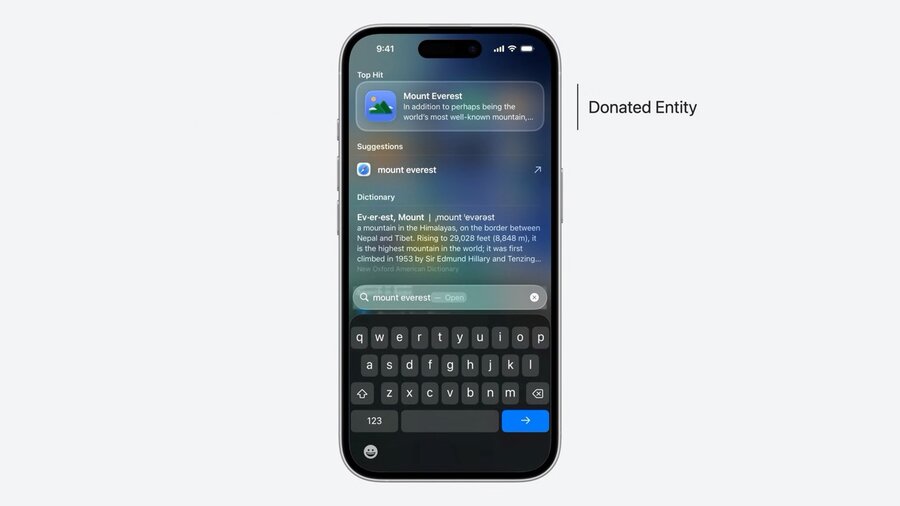

App Entities in Spotlight

struct LandmarkEntity: IndexedEntity {
    // …

    @Property(
        indexingKey: \.displayName
    )
    var name: String

    @Property(
        indexingKey: \.contentDescription
    )
    var description: String
}

• Donate to Spotlight by conforming to IndexedEntity

  • Is an AppEntity with Core Spotlight attribute set

• Add indexing keys to @Property

• Tapping Spotlight result opens app by default

• Open corresponding view via a OpenIntent:

struct OpenLandmarkIntent: OpenIntent, TargetContentProvidingIntent {
    static let title: LocalizedStringResource = "Open Landmark"

    @Parameter(title: "Landmark", requestValueDialog: "Which landmark?")
    var target: LandmarkEntity
}

// App Handling
struct LandmarksNavigationStack: View {
    @State var path: [Landmark] = []

    var body: some View {
        NavigationStack(path: $path) {}
        .onAppIntentExecution(OpenLandmarkIntent.self) { intent in
            path.append(intent.target.landmark)
        }
    }
}

• OpenIntent automatically open app before performing action

• Require target parameter

• Using TargetContentProvidingIntent doesn’t require the perform() action

  • Links to view in app via .onAppIntentExecution modifier

More Advanced Queries

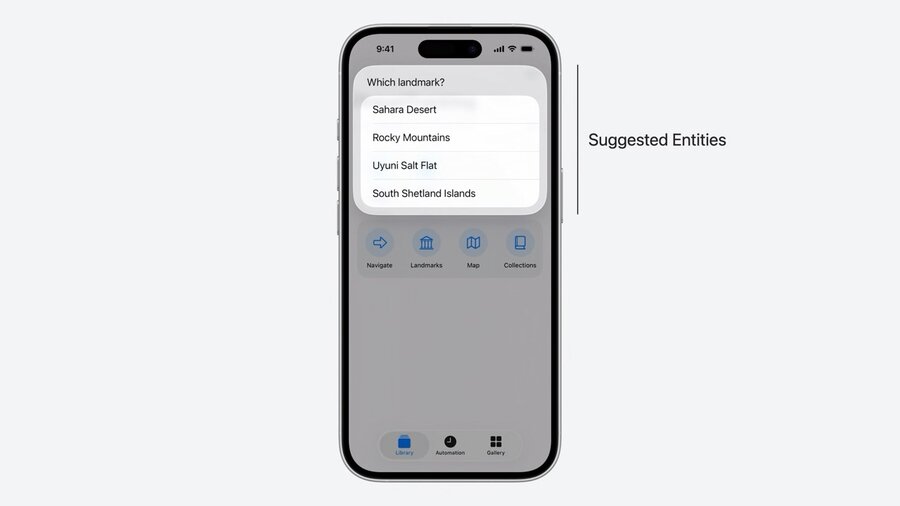

• Use suggestedEntities() to offer selection to user in Siri or App Shortcuts

• Use .updateAppShortcutParameters() in app to generate App Shortcut for each entity

struct LandmarkEntityQuery: EntityQuery {
    // …

    func suggestedEntities() async throws -> [LandmarkEntity] {
        modelData
            .favoriteLandmarks()
            .map(LandmarkEntity.init)
    }
}

• Use EnumerableEntityQuery with allEntities() function if all entities can fit in memory

• Use EntityPropertyQuery for more complicated queries:

extension LandmarkEntityQuery: EntityPropertyQuery {
    static var properties = QueryProperties {
        // …
    }

    static var sortingOptions = SortingOptions {
        // …
    }

    func entities(
        matching comparators: [Predicate<LandmarkEntity>],
        mode: ComparatorMode,
        sortedBy: [Sort<LandmarkEntity>],
        limit: Int?
    ) async throws -> [LandmarkEntity] {
        // Handle data fetching, filtering and sorting
    }
}

• Use EntityStringQuery for finding entities via matching string:

extension LandmarkEntityQuery: EntityStringQuery {
    func entities(matching: String) async throws -> [LandmarkEntity] {
        modelData
            .landmarks
            .filter { $0.name.contains(matching) || $0.description.contains(matching) }
            .map(LandmarkEntity.init)
    }
}

How it works

• Code is the source of truth

• Code is read at compile time

• Packaged with your target

• Indexed at installation

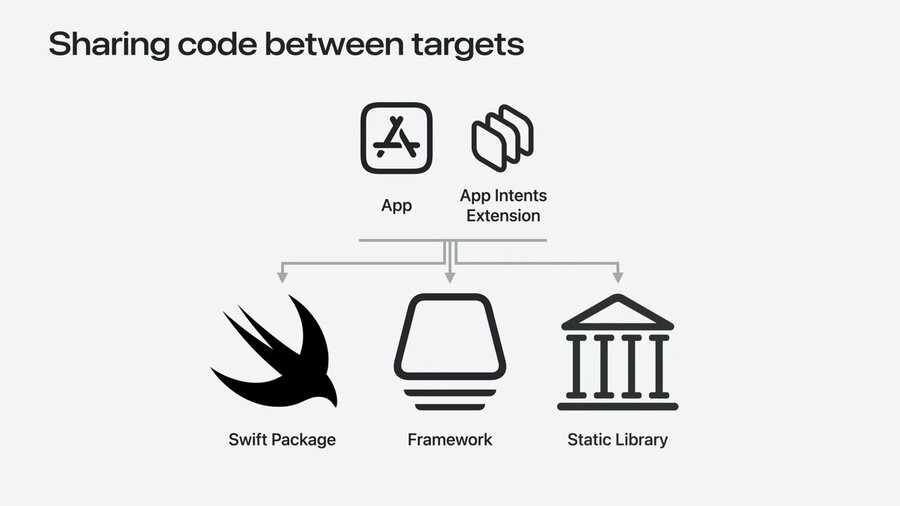

• Intents can be shared via multiple targets

• Register each target via AppIntentsPackage

// Swift Package
public struct TravelTrackingKitPackage: AppIntentsPackage {}
public struct LandmarkEntity: AppEntity {
    // …
}

// App
struct TravelTrackingPackage: AppIntentsPackage {
    static var includedPackages: [any AppIntentsPackage.Type] {
        [TravelTrackingKitPackage.self]
    }
}
struct OpenLandmarkIntent: OpenIntent {
    // …
}

// Extension
struct TravelTrackingExtensionPackage: AppIntentsPackage {
    static var includedPackages: [any AppIntentsPackage.Type] {
        [TravelTrackingKitPackage.self]
    }
}
struct FavoriteLandmarkIntent: AppIntent {
    // …
}
