Explore concurrency in SwiftUI

Key Takeaways

• MainActor is SwiftUI’s default, so views stay isolated

• Heavy work runs off the main thread, with data races flagged

• Keep callbacks synchronous, bridging UI and async work with state

Presenters

• Daniel Duan, SwiftUI Engineer

Attraction 1. MainActor Meadows

• SwiftUI’s View protocol is isolated on the @MainActor, so any conforming type is inferred to be @MainActor too

• The annotation is implied, not written by hand

  • Every member of a @MainActor-isolated type is implicitly isolated as well — body, @State properties, and so on → accessing them is always safe, with no extra annotations needed

  • A data model created inside the view doesn’t need any @MainActor annotation either

• @MainActor is SwiftUI’s compile-time default → most of the time you just build features without thinking about concurrency, and it’s safe automatically

// SwiftUI
@MainActor
public protocol View {
    associatedtype Body: View
    @ViewBuilder var body: Body { get }
}

// @MainActor (implied)
struct ColorExtractorView: View {
    // @MainActor (implied)
    @State private var model = ColorExtractor( ... )

    // @MainActor (implied)
    var body: some View { ... }
}

• A Task started inside the body inherits the @MainActor isolation → its closure runs on the main thread by default, which is convenient for updating the UI right away

// @MainActor (implied)
var body: some View {
    ImageView( ... )
    SchemeContentView(colorScheme: model.scheme, ... )
        .onTapGesture {
            Task { // @MainActor (implied)
                await model.extractColorScheme()
            }
        }
    Slider(value: $model.colorCount, ... )
}

• These annotations aren’t just a compile-time convenience

  • Reflect real runtime requirements inherited from UIKit and AppKit, which are exclusively @MainActor isolated

• UIViewRepresentable refines View, so conforming types are @MainActor too; makeUIView can safely create UIKit objects like UILabel() without any annotation

// AppKit and UIKit require @MainActor
// Example: UIViewRepresentable

// @MainActor (implied)
struct FancyUILabel: UIViewRepresentable {
    func makeUIView(context: Context) -> UILabel {
        let label = UILabel()
        // customize the label...
        return label
    }
}

Attraction 2. Concurrency Cliffs

• When the main thread has too much work, the app can drop frames or hitch → use tasks and structured concurrency to offload compute from the main thread

  • Related Session: Codealong Elevate an app with Swift concurrency

• Built-in animations already run on a background thread to calculate their intermediary states

  • Related Session: Explore SwiftUI animation

SwiftUI runs on your behalf

• SwiftUI is declarative: a struct conforming to View is not an object pinned to a fixed location in memory (unlike UIView)

• At runtime SwiftUI builds a separate representation of the view → this opens the door to many optimizations

• A key one is evaluating parts of that representation on a background thread — reserved for cases that do heavy compute on your behalf, usually high-frequency geometry math

• SwiftUI can even run your own code off the main thread. Two common examples:

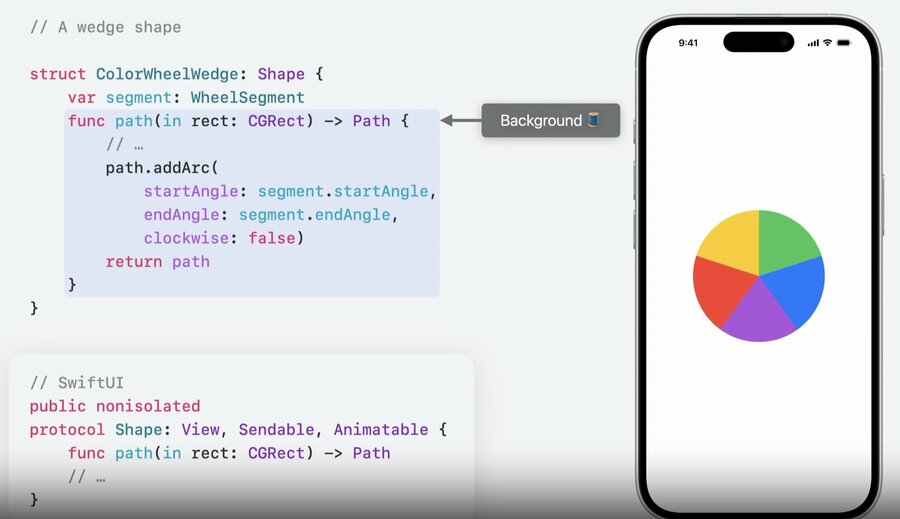

• Shape: the path(in:) requirement can be called from a background thread. A custom WedgeShape in the color wheel has its path recomputed off the main thread while it animates

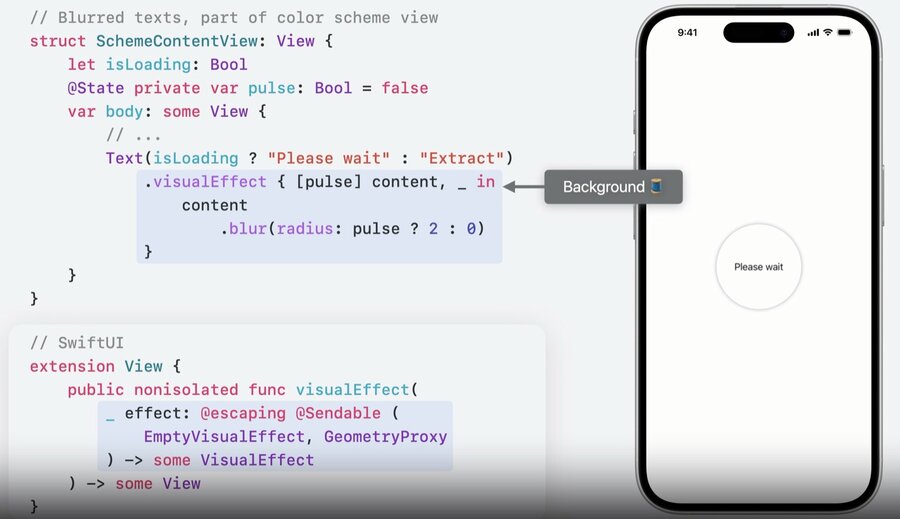

• Closure arguments: visualEffect takes a closure describing effects on the subject view. Because effects can be expensive to render, SwiftUI may call this closure from a background thread (here it blurs the text as pulse flips)

• Layout’s requirement methods and the first closure of onGeometryChange may likewise run off the main thread

• SwiftUI expresses this runtime behavior (semantics) to the compiler — and to you — with @Sendable; once again, the annotations reflect runtime semantics

// SwiftUI may call parts of these from a background thread

public nonisolated protocol Shape: View, Sendable, Animatable { ... }

public protocol Layout: Animatable, Sendable { ... }

extension View {
    public nonisolated func visualEffect(
        _ effect: @escaping @Sendable (
            EmptyVisualEffect, GeometryProxy
        ) -> some VisualEffect
    ) -> some View

    public nonisolated func onGeometryChange<T>(
        of value: @escaping @Sendable (GeometryProxy) -> T,
        do action: @escaping (T) -> Void
    ) -> some View
}

Race condition

• @Sendable is a reminder about potential data races when sharing data from the @MainActor — Swift reliably finds these and flags them with compiler errors

• Best strategy: don’t share data between concurrent tasks at all

• When an API requires a sendable function, the framework passes most of the values you need as arguments → you can do sophisticated work without touching any external variables

• If you do need a variable external to a sendable function, two things must happen:

  1. self must be sent across the boundary into the background region → requires self to be Sendable (a View is, because it’s @MainActor-protected)

  2. the property you read must be nonisolated (not isolated to any actor)

• A @MainActor-isolated property like pulse fails rule 2 → fix it by copying the value in the closure’s capture list, so you send a Bool copy instead of self

struct SchemeContentView: View { // Sendable (implied)
    let isLoading: Bool

    // @MainActor (implied)
    @State private var pulse: Bool = false

    var body: some View {
        Text(isLoading ? "Please wait" : "Extract")
            // Before: references self.pulse directly inside a @Sendable closure
            .visualEffect { content, _ in
                content.blur(radius: self.pulse ? 2 : 0) // Main actor-isolated property cannot be referenced from a Sendable closure
            }

            // After: capture pulse in the capture list so its value is copied
            .visualEffect { [pulse] content, _ in
                content.blur(radius: pulse ? 2 : 0)
            }
    }
}

Attraction 3. Code Camp

• Most SwiftUI APIs (e.g. a Button’s action callback) are synchronous → to call async code you first switch to an async context with a Task

• Why doesn’t Button accept an async closure?

  • Synchronous updates matter for a good user experience —

  • before kicking off a long-running task, you want to update the UI (like a loading state) synchronously, especially to drive time-sensitive animations

• Pattern: synchronously flip a loading state with withAnimation, start the Task, then reverse the state synchronously once it finishes

.onTapGesture {
    guard !model.isExtracting else { return }
    withAnimation { model.isExtracting = true }       // synchronous: show loading
    Task {
        await model.extractColorScheme()              // async: the heavy work
        withAnimation { model.isExtracting = false }  // synchronous: hide loading
    }
}

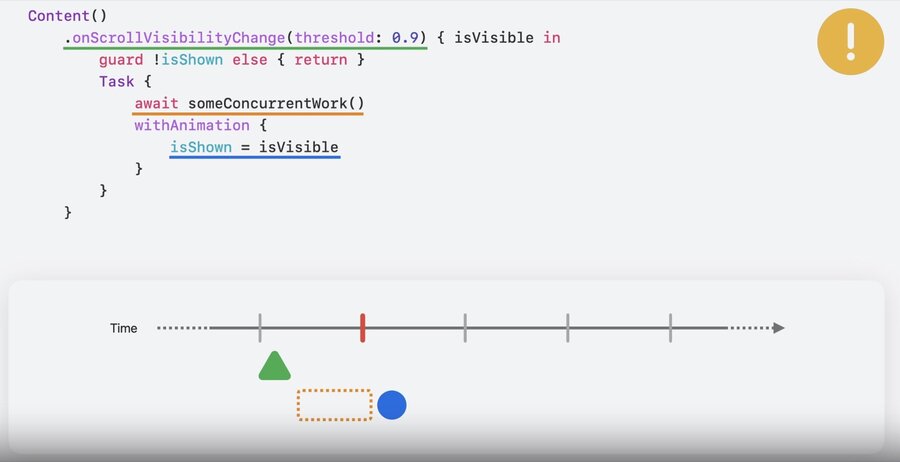

• Async functions need extra care with animations. → await creates a suspension point: the compiler splits the function in two, and the runtime may pause between the halves for an arbitrary amount of time

• If a state mutation sits after an await, it may resume past the device’s screen-refresh deadline → the animation looks laggy and out of step, so mutating inside an async function may not achieve your goal

• SwiftUI provides synchronous callbacks by default

  • updating UI inside a synchronous closure is easy to get right

  • synchronous code is a great starting and ending point for most apps

Organizing concurrent code

• If your app does a lot of concurrent work, find the boundaries between UI code and non-UI code → best to separate the async logic from the view logic

• Use a piece of state as a bridge that decouples the UI from the async code: the view starts an async task, and when the work finishes it synchronously mutates the state so the UI reacts

• Keep the code inside the async context simple: its job is just to inform the model about a UI event

• Bonus: because the async code is now independent of the UI, it’s much easier to write unit tests for it (ideally without importing SwiftUI)
