What’s new in UIKit

Explore everything new in UIKit, including tab and document launch experiences, transitions, and text and input changes. We’ll also discuss better-than-ever interoperability between UIKit and SwiftUI animations and gestures, as well as general improvements throughout UIKit.

Key features

Document launch experience

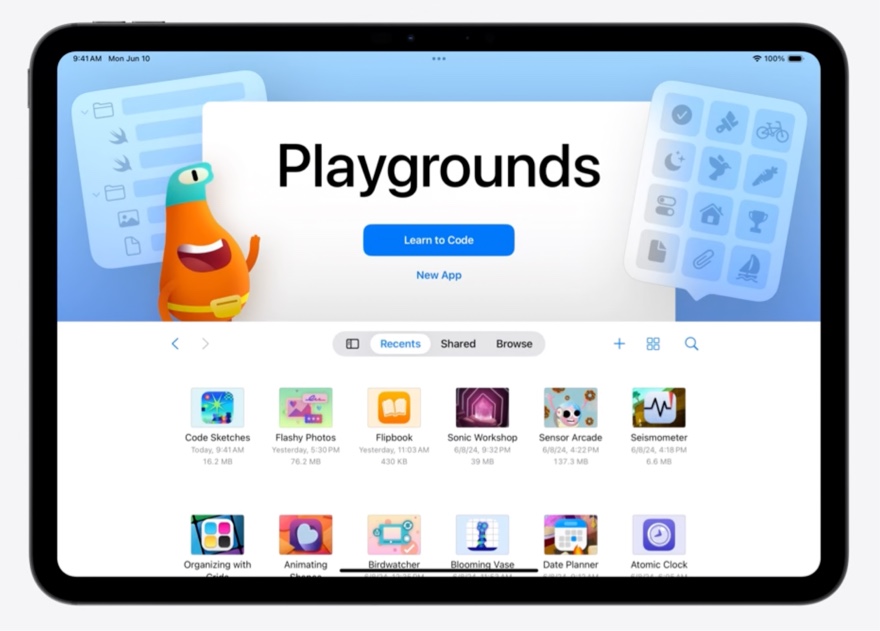

The launch view for document-based apps has a new design

Tabs and sidebars

  • on iPadOS, tab bars have visual updates and have more customization features

  • The new compact look reduces empty space

  • Combined tab bar and sidebar experience

    • See new UITabBarController APIs

  • The sidebar and tab bar can be personalized by the user using drag and drop

    • See new UITab and UITabGroup APIs

  • Native experience on both Mac Catalyst and visionOS

  • Watch Elevate your tab and sidebar experience in iPadOS

Fluid transitions

  • On iOS 18, there is a new zoom transition

  • It works with navigation and presentations

  • The transition is fully reversible and interruptible

SwiftUI interoperability

Animations

  • You can now use SwiftUI animations to animate UIKit views

UIView.animate(.spring(duration: 0.5)) { ... }
  • Includes SwiftUI custom animations

  • Can be used to animate views with gestures

    • To do this, animate both when the gesture changes and when it ends

switch gesture.state {
case .changed:
    UIView.animate(.interactiveSpring) { ... }
case .ended:
    UIView.animate(.spring) { ... }
}

Gesture recognizers

  • The gesture systems have been unified across SwiftUI and UIKit

  • Support for coordination between gestures across both frameworks

Refer to SwiftUI gestures in UIKit

  • Specify a name when setting up your SwiftUI gesture

SomeView()
    .gesture(doubleTap, name: "SwiftUIDoubleTap")
  • In UIKit, check the name associated with a UIGestureRecognizer

  • This can, for example, be used to set up failure cases for SwiftUI animations in UIKit

Add UIKit gesture recognizers to SwiftUI

Enhancements

Automatic trait tracking

  • It’s now easier to use traits and handle changes

  • View and view controller update methods now track which traits are used

  • When any of the used traits change value, UIKit automatically performs an associated invalidation

  • For example, if layoutSubviews() implementation accesses horizontalSizeClass trait, there is no need to call setNeedsLayout manually – it will be called by the automatic trait tracking system for you

List improvements

  • Updating cells is now easier

  • All views in UICollectionViews and UITableViews now have the UITraitCollection.listEnvironment trait set.

  • Use the trait to style your cells

  • With this, you don’t need to know the style of the list at the time of configuration of a cell

  • Similar to CADisplayLink, but has more features, like view tracking, as well as the ability to use low latency mode and better performance

let updateLink = UIUpdateLink(
    view: view,
    actionTarget: self,
    selector: #selector(update)
)
  • Activates automatically when the associated view is added to a visible window, and invalidates when removed

Symbol animations

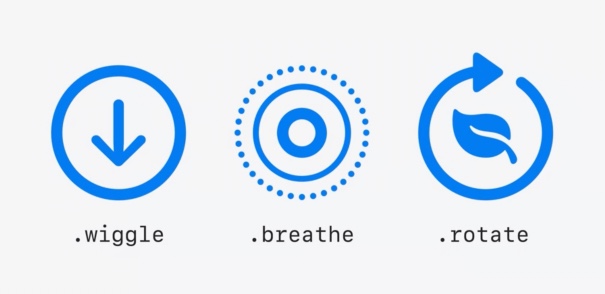

  • SF Symbols and UIKit have 3 new animation presets: .wiggle, .breathe, .rotate

3 new animation presets in iOS 18
  • New periodic behavior allows to repeat animations a set number of times, or continuously

  • .replace now seamlessly animates badges and slashes using Magic replace, and automatically falls back to existing behavior if needed

  • Watch What’s new in SF Symbols 6 and Animate symbols in your app

Sensory feedback

  • Sensory feedback is supported on iPad with Apple Pencil Pro and Magic Keyboard

    • UIFeedbackGenerator supports these interactions

    • New: UICanvasFeedbackGenerator, which is perfect for drawing and canvases

  • You should now pass the location within the view where the feedback has occurred

    • Provide the context to UICanvasFeedbackGenerator using the alignmentOccurred(at:) method

Text improvements

  • New formatting panel

  • UITextViews that support rich text automatically support the new panel via a new Edit menu action

    • Set allowsEditingTextAttributes to true

  • Developers can customize the formatting panel and disable features

  • Text highlighting is supported by default by UITextView subclasses that support rich text

    • Controlled by attributed string attributes (.textHighlight and .textHighlightColorScheme)

Writing Tools

  • Text views get the new Writing Tools UI by default

  • There are new APIs to customize the behavior

  • With iOS 18, menu actions are more useful for iPhone only apps

  • UICommand, UIKeyCommand, and UIAction can be invoked by the system for automation

Apple Pencil

  • PKToolPicker now lets you define the available tools

  • New APIs for building custom tools into the tool picker
