Dive into lazy stacks and scrolling with SwiftUI

Key Takeaways

• 📐 Only visible views render, rest is estimated

• 🧱 Keep each subview shape stable, filter data

• ⚡ Set up state in init for prefetch

• 🎯 Use scrollTo(id:), keep layout stable

Prerequisites: This session assumes basic familiarity with SwiftUI layout using stacks.
Recommended: Stacks Grids and Outlines in SwiftUI

Presenters

• Rens Breur, UI Frameworks Engineer

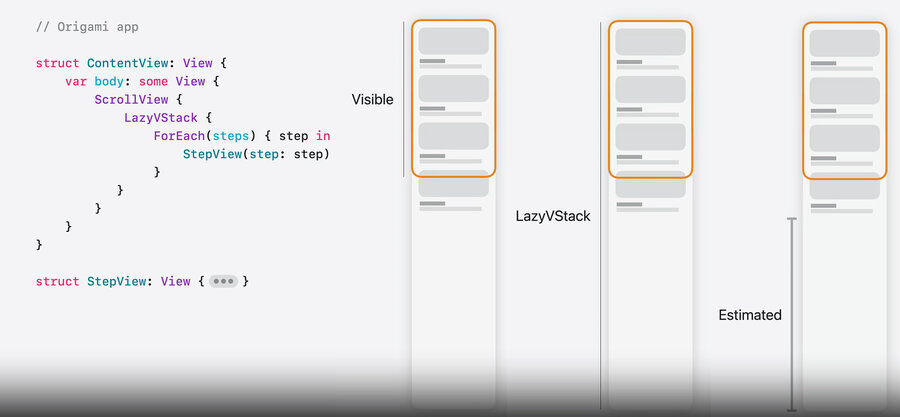

LazyVStack layout

• Unlike a VStack, a LazyVStack only evaluates/renders the visible views

  • Lays out top to bottom, stops once the visible rect is filled; off-screen views are removed

• Typically used inside a ScrollView with a ForEach

• More efficient than a VStack when there are many subviews (with few subviews, a plain VStack is fine)

• Height of off-screen subviews is estimated (avg size placed so far × remaining count) → refined while scrolling, so the scroll indicator adjusts

• Width is not lazy → ideal width = the first subview’s width (a flexible first view → full screen width)

• Content offset depends on the estimated space above the visible rect → the stack & scroll view coordinate it so views don’t jump; scrolling to the top ends at exactly 0

LazyHStack layout

• Horizontal mirror of LazyVStack: width is estimated, height = first subview’s height

  • Can’t know the tallest view up front → fix the height: set a line limit and reserve space for shorter text

Patterns to avoid

Lazy stacks only load on-screen views based on their original frame — don’t break that:

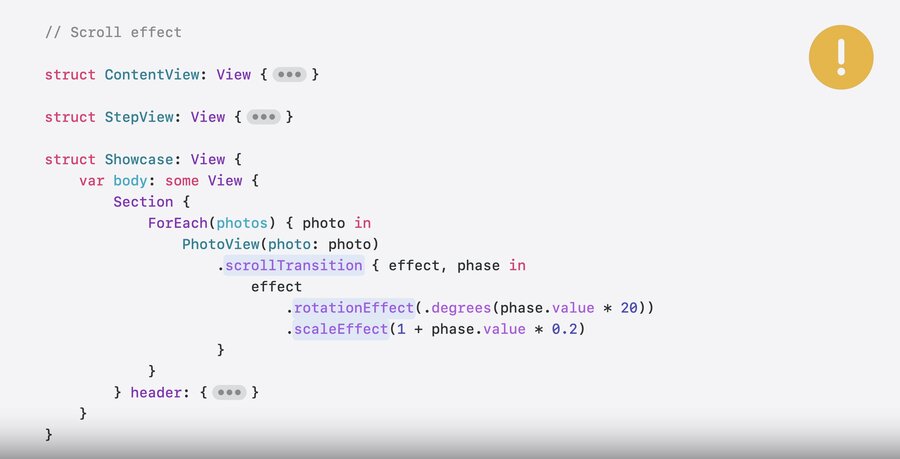

• .scrollTransition that moves a view out of its frame (scale up / rotate) → it vanishes though it should be visible

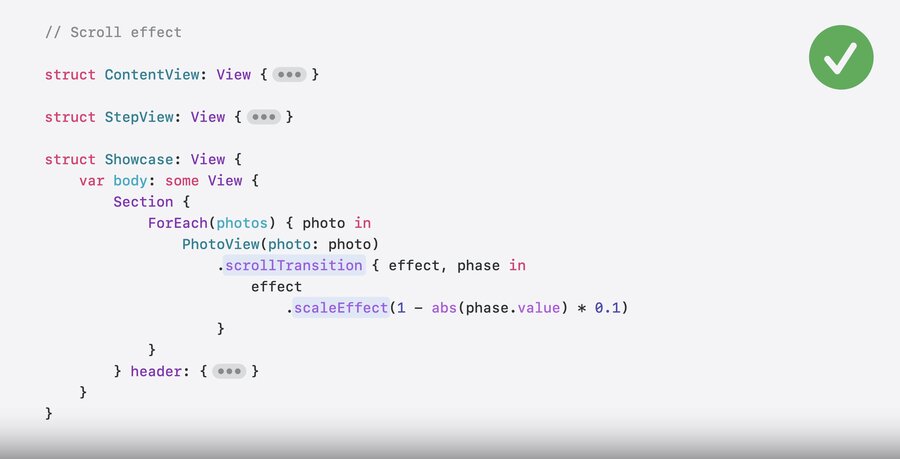

  • Fine: keep the transform inside the frame (e.g. scale down)

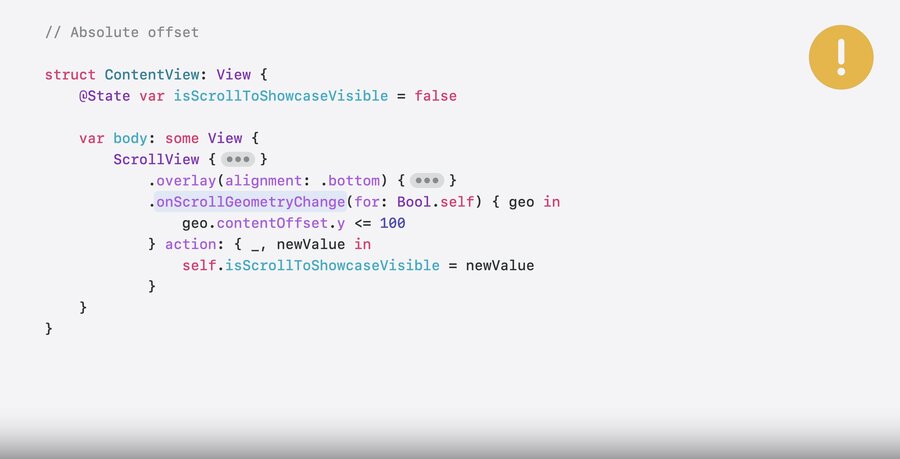

• State from the absolute contentOffset (onScrollGeometryChange) is unstable (offset is estimated)

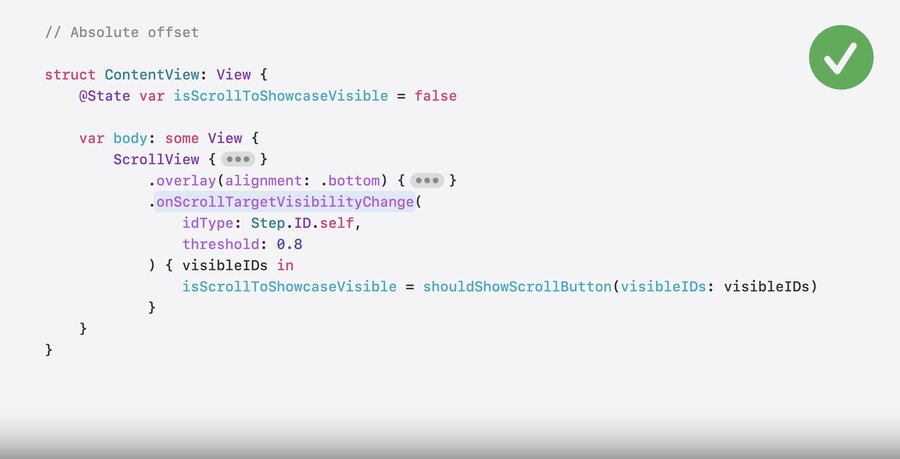

  • Fine: use relative visibility with onScrollTargetVisibilityChange

Subview loading

• A lazy stack loads only the on-screen views and addresses the visible subviews by their index

• A view struct can resolve to one subview or several

  • e.g. a StepView whose body returns StepDiagram and StepInstructions → the lazy stack loads them as two separate subviews

• So the number of subviews a struct produces matters — if it varies, the index-based addressing breaks

Writing efficient subviews

Write leaf subviews (created many times in a ForEach) so the lazy stack can load them cheaply.

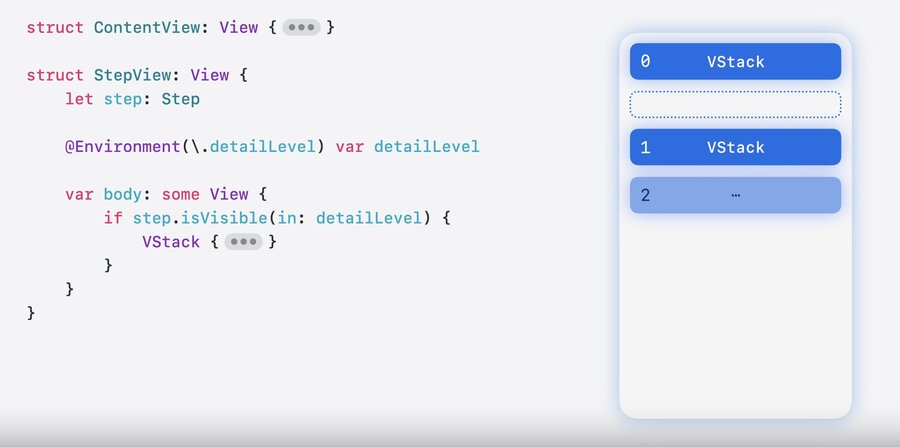

• Avoid a dynamic number of subviews — keep each subview’s body structure stable

  • If the count can change (e.g. based on detailLevel), the lazy stack has to keep earlier views around, since the change would shift indices

  • An unrelated environment value used in the body (e.g. writingStyle) also forces body re-evaluations for off-screen views

  • Instead, filter at the data level so the count is known up front

// Avoid: body structure depends on runtime values
struct StepView: View {
    let step: Step
    @Environment(\.detailLevel) var detailLevel
    var body: some View {
        if step.isVisible(in: detailLevel) { ... }
    }
}

// Prefer: filter the data, so every StepView has the same shape
struct ContentView: View {
    @Query var steps: [Step]
    init(detailLevel: DetailLevel) {
        _steps = Query(filter: #Predicate<Step> { $0.detailLevel >= detailLevel })
    }
}

• Optional unwrapping in the body has the same effect — inject a non-optional dependency instead (handle the missing case higher up)

// Avoid: if let token { ... } → structure varies
struct StepView: View {
    @Environment(\.apiToken) var token
    var body: some View {
        if let token { ... }
    }
}

// Prefer: a value that's always there
struct StepView: View {
    @Environment(NetworkClient.self) var networkClient
    var body: some View { ... }
}

• Set up the view in init, not onAppear — an onAppear setup makes the prefetched work useless (thrown away and redone on appear; with reversed scrolling onAppear may never fire)

  • Fine: onAppear when reacting to appearance is the point — e.g. a trailing ProgressView that loads the next page

// Avoid: setup in onAppear → prefetched work is discarded and redone on appear
struct StepView: View {
    let id: Step.ID
    @State var viewModel = StepViewModel()

    var body: some View {
        VStack {
            if let content = viewModel.content { ... }
        }
        .onAppear {
            viewModel.configure(with: id)
        }
    }
}

// Prefer: set up state in init, so the view is ready during prefetching
struct StepView: View {
    @State var viewModel: StepViewModel
    init(id: Step.ID) {
        _viewModel = State(initialValue: StepViewModel(id: id))
    }
}

• Async loading benefits from prefetching too — start it in init, not .task, so the fetch can begin before the view is on screen

// Avoid: .task starts loading only once the view appears
struct StepView: View {
    let step: Step
    @State var diagramLoader = DiagramLoader()
    @State var diagram: Diagram?

    var body: some View {
        VStack { ... }
            .task {
                diagram = await diagramLoader.loadDiagram(id: step.id)
            }
    }
}

// Prefer: start loading in init, so prefetching fetches the diagram earlier
struct StepView: View {
    let step: Step
    @State var diagramLoader: DiagramLoader

    init(step: Step) {
        self.step = step
        _diagramLoader = State(initialValue: DiagramLoader(id: step.id))
    }

    var body: some View { ... }
}

• Don’t keep per-item UI state as local @State — off-screen views are kept briefly, then deleted along with their state

  • lift important state to the parent (or a model)

// Avoid: isHighlighted resets when StepView is recycled
struct StepView: View {
    @State var isHighlighted = false
}

// Prefer: parent owns the state, child binds to it
struct ContentView: View {
    @State var highlighted: Set<Step.ID> = []
}
struct StepView: View {
    @Binding var highlighted: Set<Step.ID>
}

Programmatic scrolling

• Bind a ScrollPosition with .scrollPosition($scrollPosition), then call scrollPosition.scrollTo(id:) to move to a subview by its identity

• Works even when the target isn’t on screen

  • Prefer id-based scrolling over an absolute offset — the lazy stack can find the target in the ForEach without building views, and re-estimates its position every frame during an animated scroll (an absolute offset is estimated and unstable)

struct ContentView: View {
    @State var scrollPosition = ScrollPosition()

    var body: some View {
        ScrollView { ... }
            .scrollPosition($scrollPosition)
            .overlay(alignment: .bottom) {
                Button { scrollToShowcase() } label: { ... }
            }
    }

    func scrollToShowcase() {
        withAnimation {
            scrollPosition.scrollTo(id: "showcase-header")
        }
    }
}

Don’t change layout after views appear

• Changing a view’s size after it appears (measure, then feed the result back into the layout) invalidates the lazy stack’s size estimates → jumpy, less reliable scrolling

  • Common culprit: onGeometryChange sets a @State that a later layout pass consumes

• Fix: compute the size up front with a custom Layout, so it’s correct on the first pass — no post-appearance adjustment

// Avoid: measure the subtitle height, then feed it back into the layout
struct StepView: View {
    let step: Step
    @State var subtitleHeight: CGFloat?

    var body: some View {
        VStack {
            StepDiagram(diagram: step.diagram)
                .frame(height: diagramHeight(subtitleHeight: subtitleHeight))
            Title(step.title)
            Subtitle(step.subtitle)
                .onGeometryChange(for: CGFloat.self, of: \.size.height) { _, value in
                    subtitleHeight = value
                }
        }
    }
}

// Prefer: a custom Layout sizes everything in one pass
struct StepView: View {
    let step: Step

    var body: some View {
        StepLayout {
            StepDiagram(diagram: step.diagram)
            Title(step.title)
            Subtitle(step.subtitle)
        }
    }
}

struct StepLayout: Layout { ... }
