Meet the Music Understanding framework

Key Takeaways

• 🎼 Analyzes audio entirely on device

• 🥁 Six dimensions: key, rhythm, structure, pace, instruments, loudness

• ⚡️ Request only the analysis types you need

• 📊 Music Understanding Lab sample visualizes all of them

Presenters

• Conner Richardson, Computational Music

Musical features

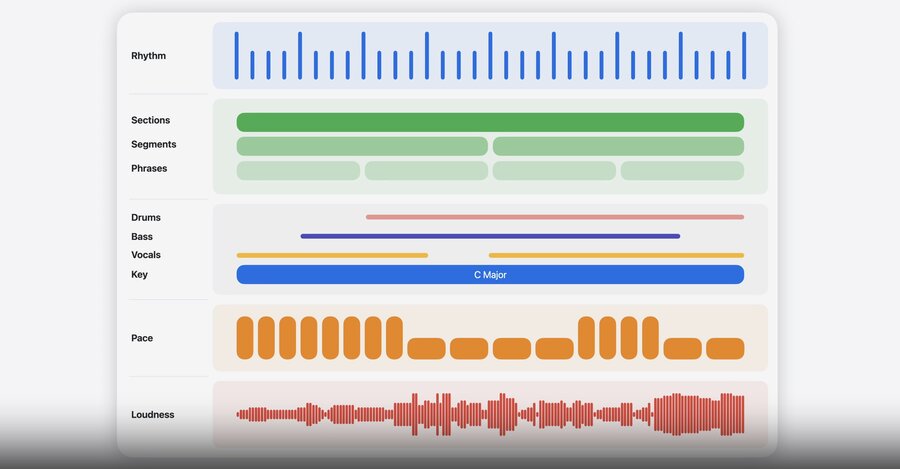

• Music Understanding analyzes a song across six dimensions, the building blocks of the framework

  • Key, Rhythm, Structure, Pace, Instrument activity, Loudness

• Rhythm: pulse of a song, driven by individual beats

  • Beats build into bars

  • Number of beats in one minute is beats per minute (bpm)

• Structure: three levels of hierarchy, built up from the rhythm

  • Phrases: bars form phrases, which are musical sentences

  • Segments: phrases combine into segments, creating a more complete musical statement

  • Sections: segments build the sections, like a chorus, verse, intro, or bridge

• Instrument activity: instruments such as drums, bass, or vocals playing at different times and at different intensities

• Key: common set of notes those instruments play around, for example C major

• Pace: how fast a part of the song feels

  • Song can have a consistent pulse or bpm, but different parts may feel slower or faster

• Loudness: song may sound louder at some points than others

Framework overview

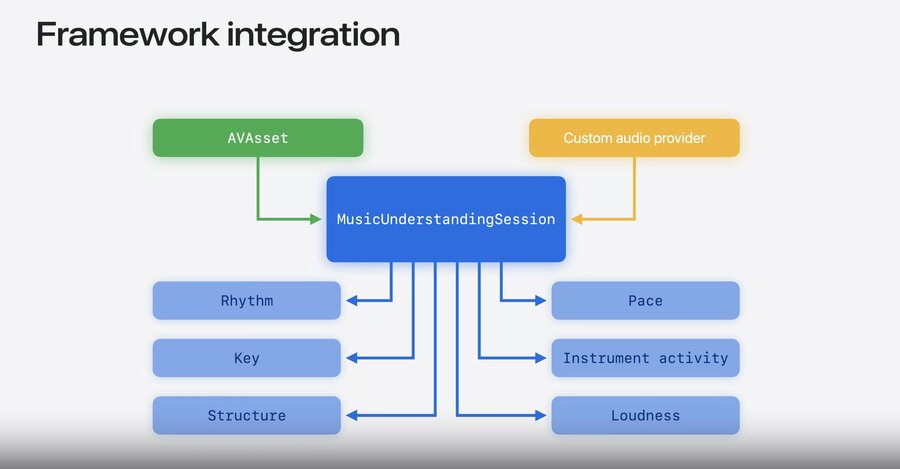

• Apps interact with MusicUnderstandingSession at a high level

• Initialize with either an AVAsset or a custom audio provider

• To start analysis, call analyze() and await results

• Everything runs on device, so analyzed audio stays private and works offline

• Framework analyzes for all analysis types by default

  • For highest performance, use analyze(for:) to specify the AnalysisTypes you are interested in and avoid unnecessary computations

• Session is single use. Call analyze() only once per instance and create a new session for another pass

Initialize the session

import MusicUnderstanding

.fileImporter(isPresented: $isPresented, allowedContentTypes: [.audio]) { result in
    switch result {
    case .success(let url):
        let asset = AVURLAsset(url: url,
                               options: [AVURLAssetPreferPreciseDurationAndTimingKey : true])
        let session = try await MusicUnderstandingSession(asset: asset)
        let results = try await session.analyze()
    }
}

• Set AVURLAssetPreferPreciseDurationAndTimingKey to true for most accurate results

Results

• All results are contained in a SessionResult struct

  • Every analyzed feature gets its own results field, all optionals

public struct SessionResult: Codable, Sendable {
    public let instrumentActivity: InstrumentActivityResult?
    public let key: KeyResult?
    public let loudness: LoudnessResult?
    public let pace: PaceResult?
    public let rhythm: RhythmResult?
    public let structure: StructureResult?
}

• analyze() populates all results

• analyze(for:) only returns what you asked for and leaves the rest nil

• Two standard types associate time with values throughout the framework:

  • TimedValue<Value>: value at a CMTime instant

  • RangedValue<Value>: value over a CMTimeRange

• All results are Codable. Encode session results with a JSONEncoder to get JSON

API features

1. Key

• One ranges entry per detected key, so a song that changes key reports more than one

public struct KeyResult: Codable, Sendable {
    public let ranges: [MusicUnderstandingSession.RangedValue<KeySignature>]
}

• Key signature pairs a tonic, the root note, with a mode, major or minor

public struct KeySignature: Codable, Hashable, Sendable {
    public let tonic: Tonic
    public let mode: Mode
}

@frozen public enum Tonic: String, Codable, Hashable, Sendable {
    case aFlat, aSharp, a, bFlat, b, c, cSharp, d, dFlat, dSharp, eFlat, e, f, fSharp, g, gFlat, gSharp
}

public enum Mode: String, Codable, Hashable, Sendable {
    case major, minor
}

2. Rhythm

• Gives the timestamp of every beat and bar as arrays of CMTime

• Also provides the overall tempo with beatsPerMinute (optional)

public struct RhythmResult: Codable, Sendable {
    public let beats: [CMTime]
    public let bars: [CMTime]
    public let beatsPerMinute: Float?
}

3. Structure

• Supports three levels: sections, segments, and phrases

  • Each of them comes back as an array of CMTimeRange

public struct StructureResult: Codable, Sendable {
    public let sections: [CMTimeRange]
    public let segments: [CMTimeRange]
    public let phrases: [CMTimeRange]
}

4. Pace

• One ranges entry per stretch of the song, each carrying a Double

  • Higher value means that part feels faster, no matter what the bpm is

public struct PaceResult: Codable, Sendable {
    public let ranges: [MusicUnderstandingSession.RangedValue<Double>]
}

5. Instrument activity

• Both fields are keyed by Instrument, so you look up one instrument at a time

  • ranges: when the instrument is playing

  • activity: how prominent it is at each moment, from 0 to 1

public struct InstrumentActivityResult: Codable, Sendable {
    public let ranges: [Instrument: [CMTimeRange]]
    public let activity: [Instrument: [MusicUnderstandingSession.TimedValue<Float>]]
}

6. Loudness

• integrated and peak are single values for the whole song

• momentary and shortTerm are series of values that follow the song over time

public struct LoudnessResult: Codable, Sendable {
    public let integrated: MusicUnderstandingSession.TimedValue<Float>
    public let momentary: [MusicUnderstandingSession.TimedValue<Float>]
    public let shortTerm: [MusicUnderstandingSession.TimedValue<Float>]
    public let peak: MusicUnderstandingSession.TimedValue<Float>
}

• Also provides a streaming API for loudness

  • Loudness is the only feature with incremental delivery, one value per 100 ms of analyzed audio

public var loudnessResults: some AsyncSequence<LoudnessResult, any Error> & Sendable

Working with audio and results

Audio Provider

• AudioProvider conforms to AsyncSequence and yields AVReadOnlyAudioPCMBuffer objects

struct AudioProvider: AsyncSequence, AsyncIteratorProtocol {
    func makeAsyncIterator() -> Self {
        return self
    }

    mutating func next() async -> AVReadOnlyAudioPCMBuffer? {
        // Return the next audio buffer, or nil to signal completion
    }
}

Encode to JSON

• All MusicUnderstanding results are codable

import MusicUnderstanding

let session = try await MusicUnderstandingSession(asset: asset)
let results = try await session.analyze()

let encoder = JSONEncoder()
try encoder.encode(results)

Ideas from the session

• Sync visuals to beat, loudness, or pace in a video editing feature

• Organize a music catalog by tempo or key in a DJ app

• Pre-compute and bundle analysis data to animate a game to the music

• Sample code: Creating visuals with Music Understanding analysis results
