WidgetKit foundations

Fundamentals

• Widgets are glanceable, relevant, and personalized

• Widgets are exclusively build with SwiftUI

• Shared data needs to be in App Group Container

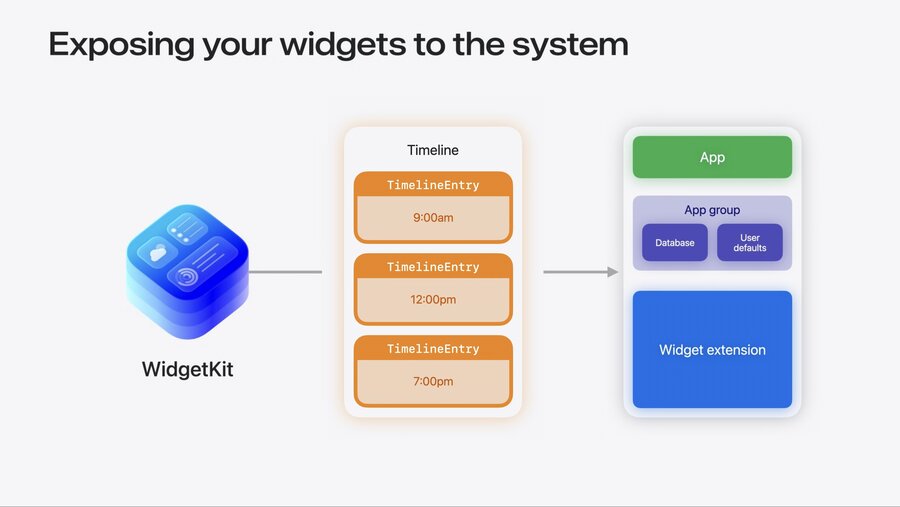

• WidgetKit asks Widget extension for content

• Content is provided via timeline with multiple entries

  • Each entry has it’s own data to render content

  • System displays each entry at relevant time

• Two types of Widgets:

  • AppIntentConfiguration: configurable by user

  • StaticConfiguration: static/non-configurable

struct DailyReadingGoalWidget: Widget {
    var body: some WidgetConfiguration {
        StaticConfiguration(
            kind: "DailyReadingGoalWidget", // Custom unique identifier
            provider: DailyReadingGoalProvider() // Timeline provider to produce entries
        ) { entry in
            // SwiftUI View to render content
            DailyReadingGoalView(book: entry.book,
                                 message: entry.message,
                                 timeOfDay: entry.timeOfDay)
            .containerBackground(for: .widget) {
                // Handling of Widget background for different home screen appearances like glass
                Background()
            }
        }
    }
}

Timeline Provider

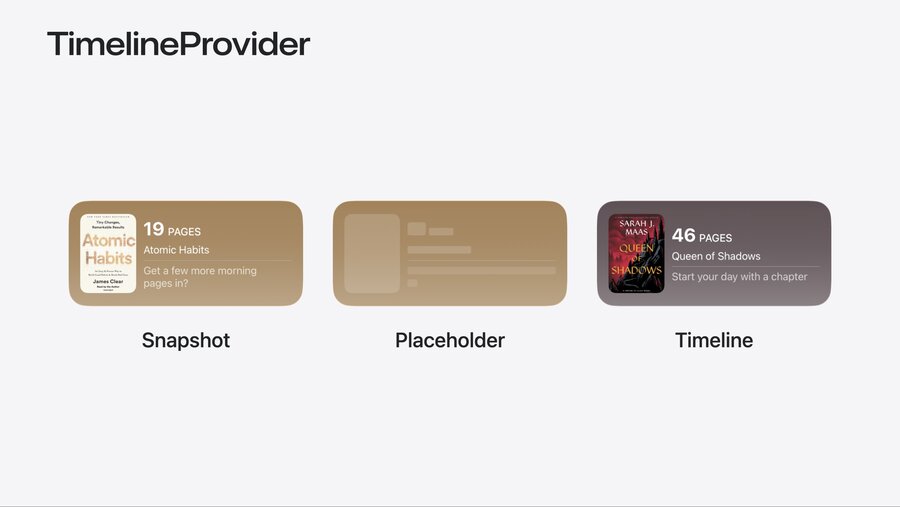

• TimelineProvider` supplies three states:

• Snapshot: Realistic preview shown in Widget gallery

  • Example: Feature popular book before loading apps data

• Placeholder: Stand-in view when content is not loaded yet

  • Needs to be synchronous as it shows up instantly

  • Provide placeholder that does not need data from disk or network

  • Use redacted modifier to provide simplified appearance

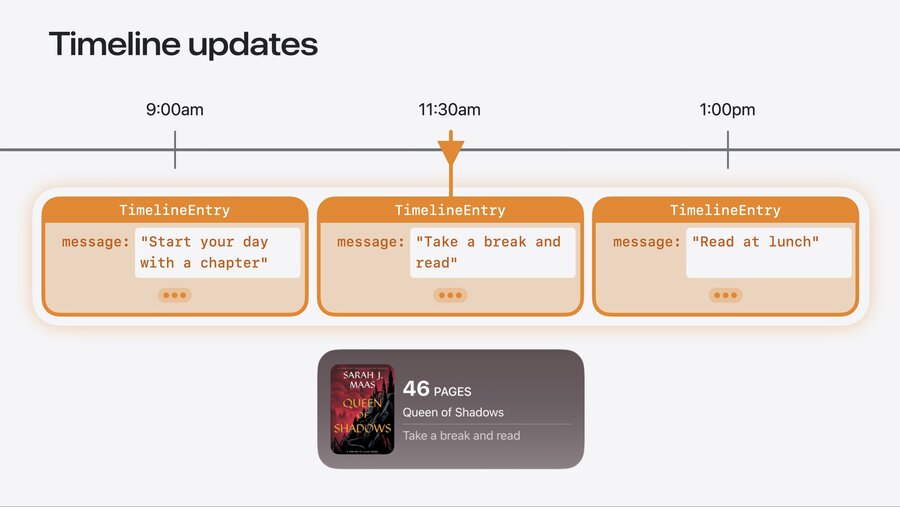

• Timeline: Actual view of specific moment in time

  • Can be now or in any point of future

• Timeline entries provide view for specific point in time

• Needs to be refreshed at some point via reload policy

• Reload policy options:

  • .atEnd: Asks for more after all entries are exhausted

  • .afterDate: Specific date for desired reload

  • .never: Only manual reloads via explicit WidgetCenter call or push notifications

Timeline Best Practices

• Provide multiple entries when possible

• Reloads heavily budgeted by system for all day battery life

  • Influenced by users viewing habits

• Frequent reloads when app is in foreground might be throttled

  • One reload when entering background is good idea

• Consider Live Activities for frequent updates in fixed time range

  • Learn more: Live Activities essentials

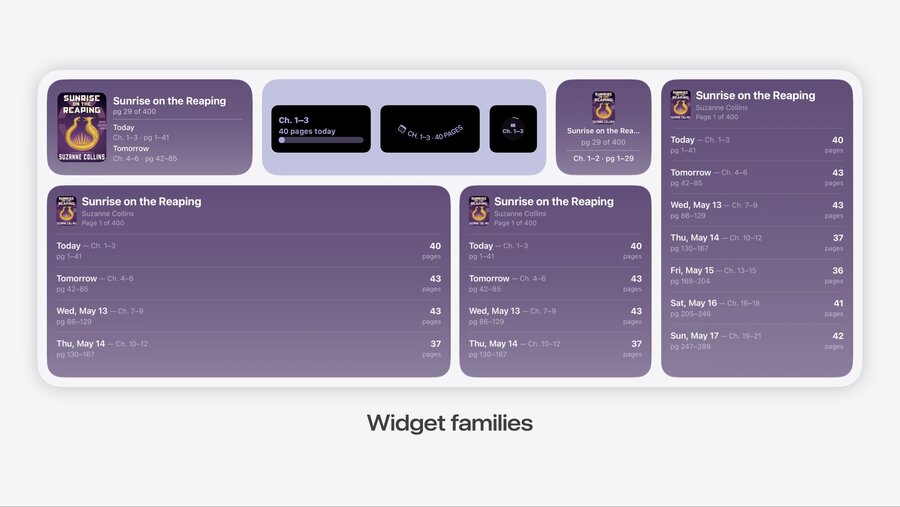

Widget Families

• Recommended go support as many families as possible

  • System extra large portrait family is new in iOS/iPadOS/macOS 27

• Use .supportedFamilies to define which you support

  • All available types at WidgetFamily

StaticConfiguration(kind: "DailyReadingGoalWidget", provider: DailyReadingGoalProvider()) { entry in
    // SwiftUI View to render content
    DailyReadingGoalView(book: entry.book,
                         message: entry.message,
                         timeOfDay: entry.timeOfDay)
}
.supportedFamilies([.systemMedium])

Integrate with Your App

Deep Links

• Tapping Widget opens app by default

• Use .widgetURL to define custom deep link handling when launching app

StaticConfiguration(kind: "DailyReadingGoalWidget", provider: DailyReadingGoalProvider()) { entry in
    // SwiftUI View to render content
    DailyReadingGoalView(entry: entry)
        .widgetURL(URL(string: "bookclub://reading/\(entry.book.bookID)"))
}
.supportedFamilies([.systemMedium])

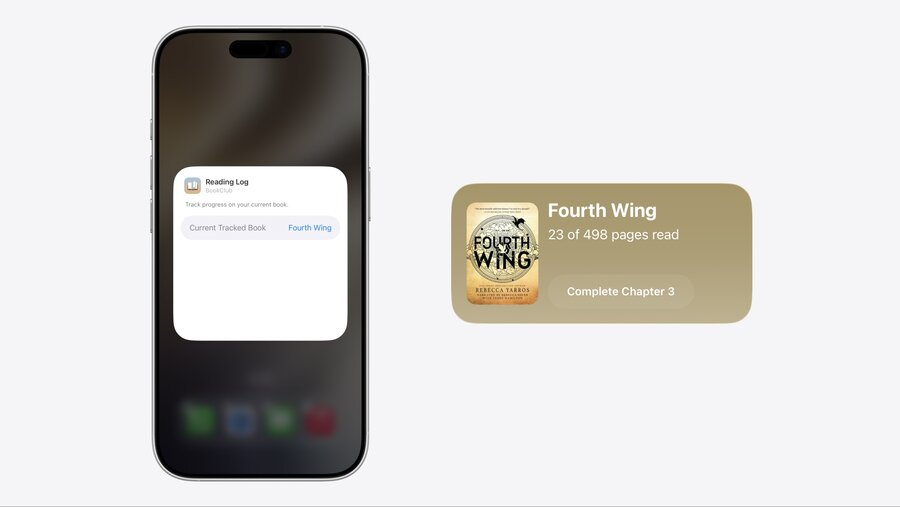

Configurable Widgets

• Customize Widgets like Weather app

• Allows adding same Widget with different configurations

• Keep options small and use sensible defaults

• Configuration handled via AppIntents framework

  • Learn more: Explore enhancements to App Intents

Interactive Elements

• Interaction via button or toggle

• Performed with AppIntents

• Learn more: Bring widgets to life

Adapt with System

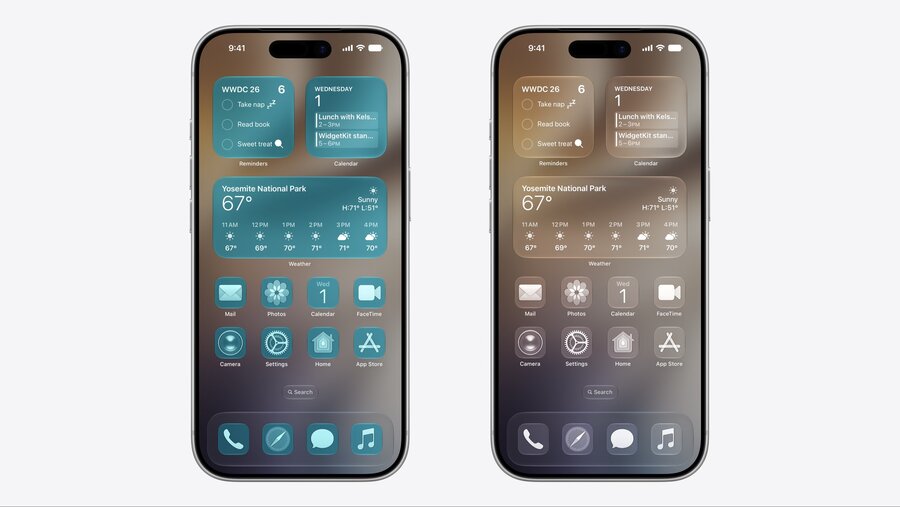

• System renders Widget without background and optional tint in glass appearances

• Use .widgetAccentedRenderingMode to override automatic monochrome conversion

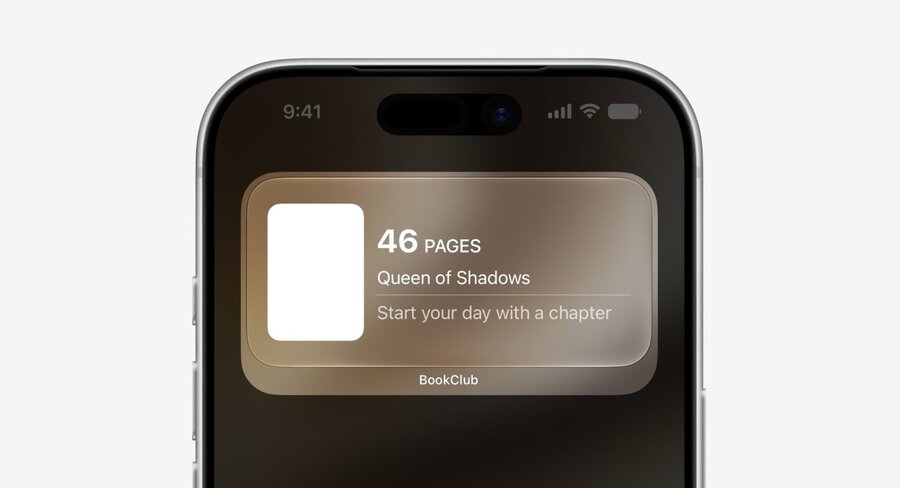

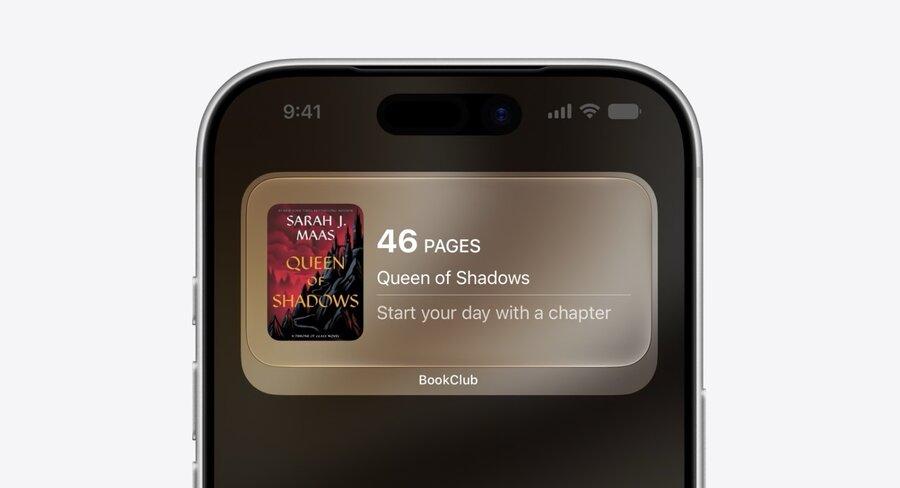

BeforeAfter

struct BookCoverImage: View {
    let imageName: String

    var body: some View {
        Image(imageName, bundle: .main)

    }
}

struct BookCoverImage: View {
    let imageName: String

    var body: some View {
        Image(imageName, bundle: .main)
            .widgetAccentedRenderingMode(.fullColor)
    }
}

Testing

• Check all system appearances: full color, clear and tinted

• Widgets can be accessed via remote devices like on Mac

• Use previews to check all variants

  • #Preview(as: .systemSmall) for specific previews

• Enable “WidgetKit Developer Mode” in system settings to lift budget restriction
