Meet Swift OpenAPI Generator

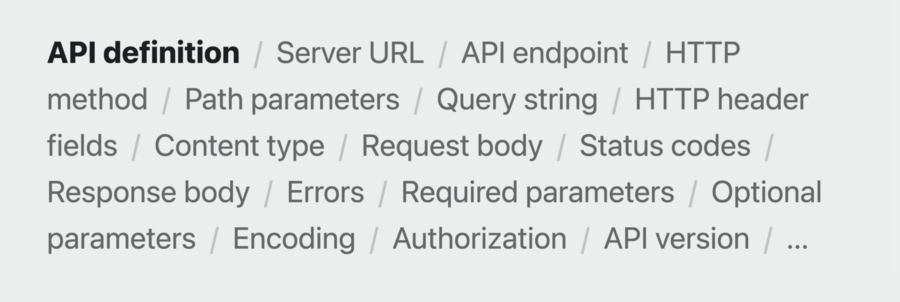

Challenges of defining an API

• Most services have some kind of documentation, but hand-written can be outdated

• With access to source code, implementation can be used – but incomplete understanding

• Support forums might help, but those who help might be underinformed -> incomplete picture

Exploring OpenAPI

• Tried-and-tested Industry-standard

• You declare your API in YAML or JSON

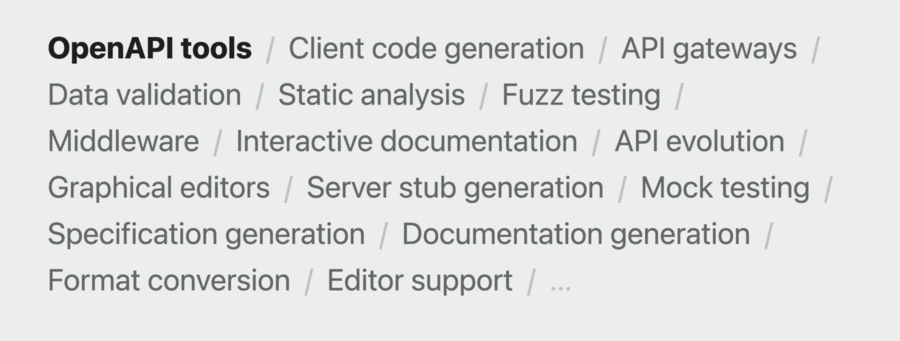

• Rich ecosystem of tooling

• Known for interactive documentation

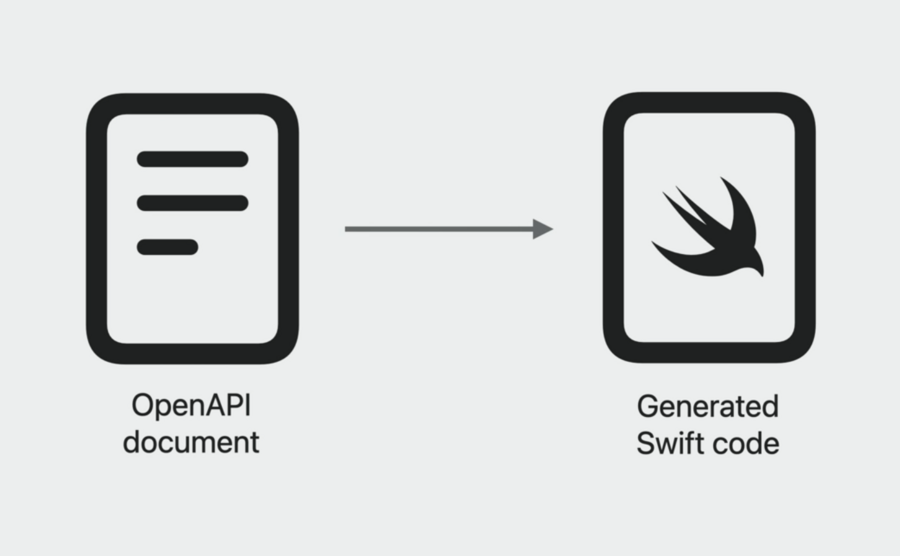

• Core motivation is code generation

• Without OpenAPI, creating query & interpreting the response can be complex

• Working with larger APIs detracts from the core logic of the app

Example OpenAPI document:

openapi: "3.0.3"
info:
  title: "GreetingService"
  version: "1.0.0"
servers:
- url: "http://localhost:8080/api"
  description: "Production"
paths:
  /greet:
    get:
      operationId: "getGreeting"
      parameters:
      - name: "name"
        required: false
        in: "query"
        description: "Personalizes the greeting."
        schema:
          type: "string"
      responses:
        "200":
          description: "Returns a greeting"
          content:
            application/json:
              schema:
                $ref: "#/components/schemas/Greeting"

With the help of an OpenAPI Generator complex API handling can become as simple as this with safe types:

switch try await client.getGreeting(Operations.getGreeting.Input(query: Operations.getGreeting.Input.Query(name: "Jane"))) {
case .ok(let response):
	switch response.body {
		case .json(let greeting):
		print(greeting.message)
	}
}

• Swift OpenAPI Generator is a Swift package plugin, generates code at build time

• Always in sync with OpenAPI document, no need to commit code to source control

Making API calls from your app

• To use OpenAPI Generator, add package to your app from https://github.com/apple/swift-openapi-generator

• Next, add also the package from https://github.com/apple/swift-openapi-runtime to your app

• Lastly, add also the package from https://github.com/apple/swift-openapi-urlsession for the code to be generated for URLSession

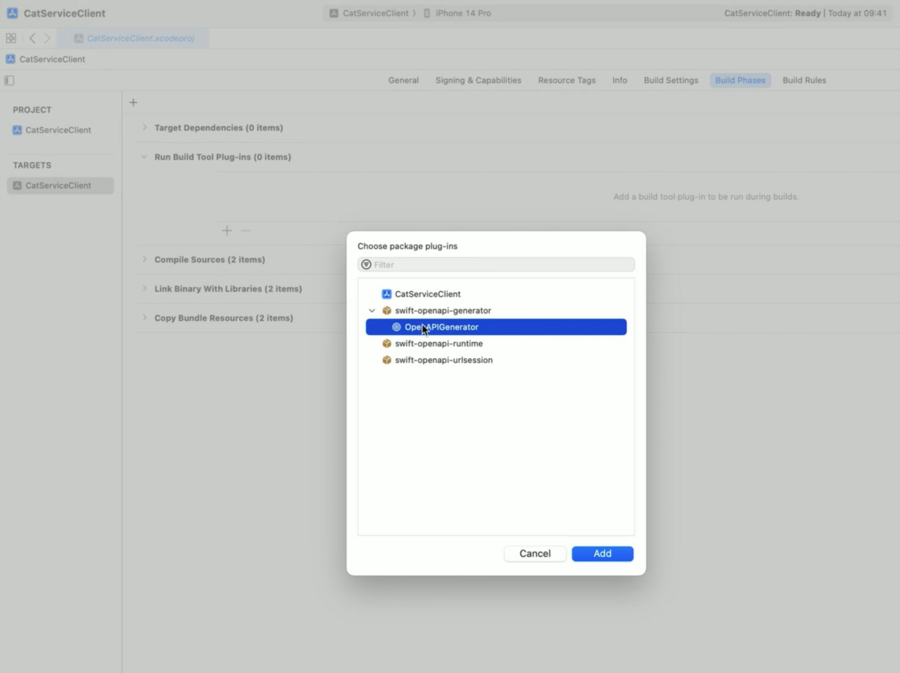

• In “Build Phases”, in the “Run Build Tool Plug-Ins”, add OpenAPIGenerator

• The plugin expects 2 files in project: openapi-generator-config.yaml (config) and openapi.yaml (spec)

• The config file specifies what code to generate, e.g. generate: [types, client]

• In SwiftUI, import OpenAPIRuntime and OpenAPIURLSession, then initialize a Client(severURL: ..., transport: URLSessionTransport())

• Now you can call the API using try await client.getEmoji(Operations.getEmoji.Input()) or with whatever endpoints are defined in the spec

• The reponse of this call is an enum with all possible cases documented + content types -> forces us to handle all scenarios

• To also handle any behavior that is not documented, there’s .undocumented(statusCode:_:) to handle it gracefully

Adapting as the API evolves

• For example, when adding a new parameter to the API document like count

• The generated Swift code will force you to add the parameter in all places where needed, else Swift fails

Testing your app with mocks

• Define MockClient: APIProtocol, the compiler will give you errors and fix-its to fill in the APIs you need

• Make the view generic over C: APIProtocol like in struct ContentView<C: APIProtocol>: View

• Update your client property to use the generic type C instead

• Define a new initializer where the client is passed (init(client: C)) for dependency injection

• Use where C == Client on default initializer to use real server when app launched

• Pass MockClient() when previewing the UI in Xcode

Server development in Swift

All the code needed to write a simple test server using the OpenAPI generator that handles the requests is this:

import Foundation
import OpenAPIRuntime
import OpenAPIVapor
import Vapor

struct Handler: APIProtocol {
    func getEmoji(_ input: Operations.getEmoji.Input) async throws -> Operations.getEmoji.Output {
        let candidates = "🐱😹😻🙀😿😽😸😺😾😼"
        let chosen = String(candidates.randomElement()!)
        let count = input.query.count ?? 1
        let emojis = String(repeating: chosen, count: count)
        return .ok(Operations.getEmoji.Output.Ok(body: .text(emojis)))
    }
}

@main
struct CatService {
    public static func main() throws {
        let app = Vapor.Application()
        let transport = VaporTransport(routesBuilder: app)
        let handler = Handler()
        try handler.registerHandlers(on: transport, serverURL: Servers.server1())
        try app.run()
    }
}

The related Package.swift file of the server package looks like this:

// swift-tools-version: 5.8
import PackageDescription

let package = Package(
    name: "CatService",
    platforms: [
        .macOS(.v13),
    ],
    dependencies: [
        .package(url: "https://github.com/apple/swift-openapi-generator", .upToNextMinor(from: "0.1.0")),
        .package(url: "https://github.com/apple/swift-openapi-runtime", .upToNextMinor(from: "0.1.0")),
        .package(url: "https://github.com/swift-server/swift-openapi-vapor", .upToNextMinor(from: "0.1.0")),
        .package(url: "https://github.com/vapor/vapor", .upToNextMajor(from: "4.69.2")),
    ],
    targets: [
        .executableTarget(
            name: "CatService",
            dependencies: [
                .product(name: "OpenAPIRuntime", package: "swift-openapi-runtime"),
                .product(name: "OpenAPIVapor", package: "swift-openapi-vapor"),
                .product(name: "Vapor", package: "vapor"),
            ],
            resources: [.process("Resources/cat.mp4")],
            plugins: [.plugin(name: "OpenAPIGenerator", package: "swift-openapi-generator")]
        ),
    ]
)

Additionally, on the openapi-generator-config.yaml file, instead of client, add server for the right code to be generated (alongside types).

Like on the client side, when making changes to the API spec, like adding new endpoints, the server package build will fail and offer fix-its to add the missing parts.

Main Takeaway

Start with defining the OpenAPI doc to use this kind of flow saving you time on both the client & server. This is called “Spec-Driven Development”.
