Mastering Xcode Previews

• The preview API is part of SwiftUI, but we can use it for preview UIKit views as well.

• To create previews on the current file, create a new Struct conforming to the PreviewProvider protocol:
  usually this preview will returns the view of the current file and that’s it.

• Wrap the preview declarations with #if DEBUG #endif compile conditions to make sure previews will be compiled only in debug mode.

• We can select the device destination on the preview screen itself, or we can specify it in our preview code by using .previewDevice(“iPhone X”).

• Instead of a device, we can also focus on the raw view itself (a-la xib files), and that is done via the .previewLayout() API.

• Use Group { .. } to display multiple previews at once.

• Override environment variables with the .environment(\.sizeCategory, .extraLarge) API

• Use forEach to test all cases:

#if DEBUG

struct ContentView_Previews: PreviewProvider {
  static var previews: some View {
    Group {
      ForEach(ContentSizeCategory.allCases, id: \.hashValue) { size in
        ContentView()
          .environment(\.sizeCategory, size)
      }
    }
  }
}

#endif

• If we have too many previews, we can assign each a name (displayed below each preview) with the .previewDisplayName(“title”) API`.

Development assets

• New in Xcode 11

• Used (for example) when we want to preview images without having needing to relay on a network or with the need to add assets in our final binary.

UIKit previews

• Works exactly like SwiftUI previews

• Create a PreviewProvider.

• Create a UIViewRepresentable/UIViewControllerRepresentable.

• Add UIViews/UIViewControllers in the PreviewProvider’s previews static property.

Canvas Protips:

• Use the pin button in the bottom left corner of the preview to pin the current preview and jump to other files.

• Show/hide the canvas by pressing ⌘ + ⌥ + ↩.

MVVM

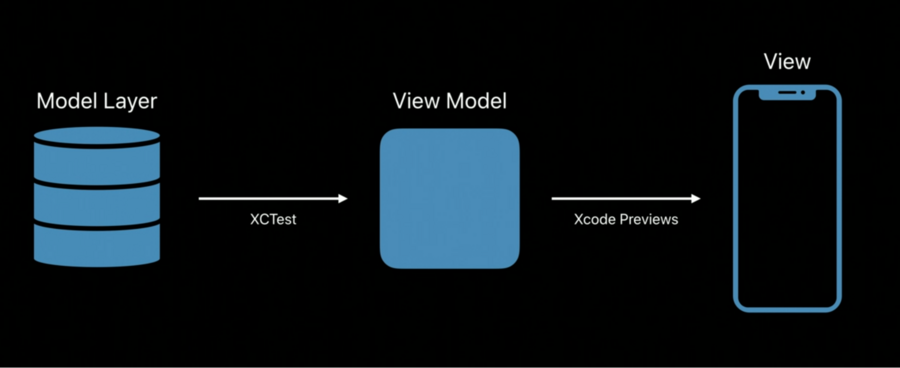

Apple is really pushing us to use the MVVM architecture with SwiftUI: Model-view-viewmodel.

Apple even suggests to add tests on how data migrates from a model to a view model:
