Core Animation Essentials

Check out the Core Animation Programming Guide.

Sample code

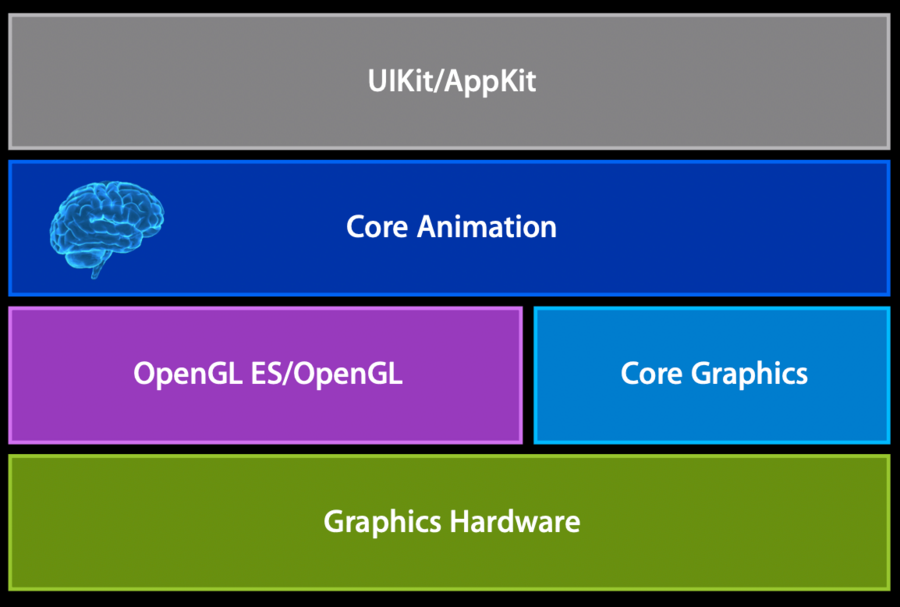

Architecture

Introduction

Imagine that we’d like to move a layer from point a to point b. We’d do this by setting the position of the layer:

ball.position = p;

When we do this, Core Animation needs to take care for mainly two things for the animation to happen:

1. interpolated points

2. timing (timing function that controls how the appearance will look like)

Once these have been set, Core Animation will play the animation by producing all the intermediate frames and display them onto the device.

Layers and layer properties

• Every UIView has a CALayer (accessible via view.layer)

• UIView‘s drawRect renders directly into the layer (it’s like we’re drawing directly there)

How to create and add new layers

#import <QuartzCore/QuartzCore.h>

CALayer* myLayer = [CALayer layer];
myLayer.bounds = CGRectMake(0,0,w,h);
myLayer.position = CGPointMake(x,y); // coordinates in the coordinate space of the hosting layer
myLayer.content = familyImage; // provide content of the layer, in this case an image
[view.layer addSubLayer:myLayer];

Adding/managing layers is similar to adding/managing UIViews, with the difference that they’re much more lightweight.
Here are some of the methods you might want to use:

• addSublayer:

• insertSublayer:above: (and similar)

• setNeedsLayout

• layoutSublayers

• setNeedsDisplay

• drawInContext: - you can override this in your CALayer subclass to provide your context using CoreGraphics

A more common way to override drawInContext: is to set the layer delegate and implement drawLayer:inContext:.

Layers support transformations is 3D (it has x, y, and z axes).

Animating layer properties

An animation is an interpolations of points from a start position (fromValue) to an end position (toValue).

There are two styles of animations in Core Animation:

• implicit animations

• explicit animations

Implicit animations

// This layer will fade out with a default animation duration of 1 second
myLayer.opacity = 0;

If we want to change the duration, we do so via a CATransaction:

[CATransaction setAnimationDuration:5]
myLayer.opacity = 0;

Note that the position of these lines is important: if myLayer.opacity = 0; came before the transaction duration, that animation would have used the default animation duration.

Behind the scenes:
When we do a layer property change, if Core Animation finds a CAAction for that property, then Core Animation will create a CAAnimation and adds it to the layer via [self addAnimation:forKey:], which creates the implicit animation.

Transactions

• All applied together in run loop

• CATransaction class

  • duration

  • timing function

  • CATransaction properties are applied at the time an implicit animation is created (e.g., myLayer.opacity = 0;)

Use [CATransaction setDisableActions:YES] to disable animations (and get the layer property change as soon as possible).

Note that this command is only valid for the next run loop.

Explicit animations

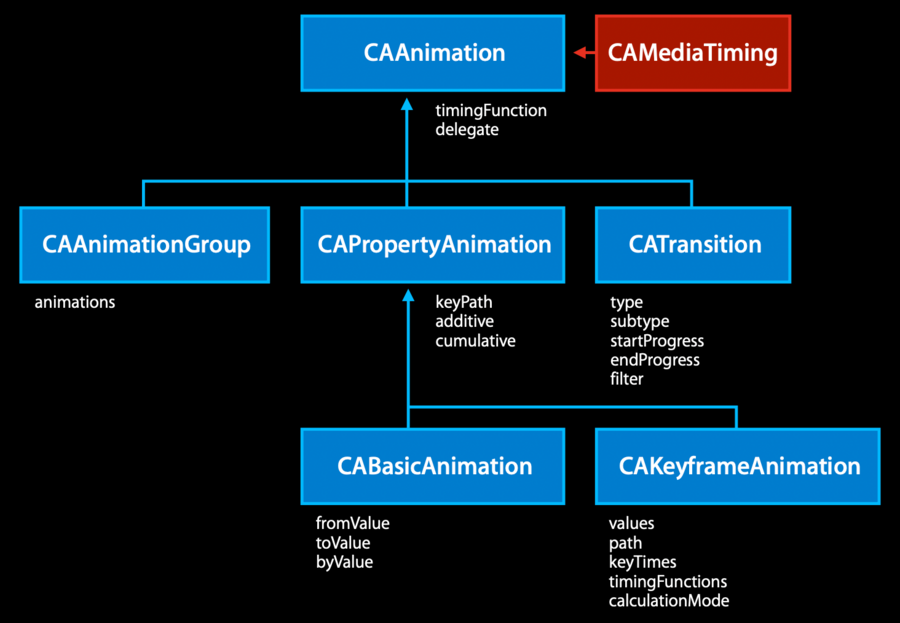

Animations that we create, we mostly only create animations that are either (leaves in the chart above):

• CAAnimationGroup

• CABasicAnimation

• CAKeyframeAnimation

Example (note that for position we could use the implicit animation):

// First we set the final position in the model layer (explicit animations only touch the presentation layer)
layer.position = toPosition;

// Then we create the animation for that change
CABasicAnimation* drop = [CABasicAnimation animationWithKeyPath:@"position.y"];
// The initial value of the animation
drop.fromValue = [NSNumber numberWithFloat:startPosition.y];
// The final value of the animation, this should match the value we set above
drop.toValue = [NSNumber numberWithFloat:toPosition.y];
// No need to use [CATransaction setAnimationDuration:5]
drop.duration = 5;
// The animation will start as soon as we add it to the layer.
// The key is used to identify the animation, in case we need to do some operations on it later.
[layer addAnimation:drop forKey:@"position"];

All implicit animations will use the name of the changed property as the animation key:

• when we write layer.position = toPosition;, an implicit animation with key "position" will be added to our layer

• by setting our explicit animation with the same key "position", we’re cancelling the implicit animation and make sure that only our explicit animation takes place

Keyframe animations

With CAKeyframeAnimation we’re giving Core Animation a few “key” points or our animation, and leave Core Animation to figure out the rest of the interpolated points.

How to setup keyframe animations:

1. Use either

• path - the animation will follow the control points of the path as its keyframes

• values - the animation will interpolate among the values set here

1. Set keyTimes (optional) - you can tell the fraction of total time for each keyframe segment, each value has to be 0 to 1

2. Set calculationMode to tell which interpolation to compute for the frames between the given values or along the path, the options are:

• Linear

• Discrete - no interpolation, jump from key value to key value

• Cubic - fills gaps with Bezier curves

Group animations

This animation gathers together other kind of explicit animations which are then:

• Applied simultaneously to layer’s properties’

• Their timings are clipped to the group timing

Example:

CABasicAnimation* a1 = ....
CAKeyFrameAnimation* a2 = ...
CAAnimationGroup* group = [CAAnimationGroup animation];
group.animations = [NSArray arrayWithObjects:a1,a2,...,nil];
group.duration = ...
[layer addAnimation:group forKey:nil];

How to add perspective to layers

1. Change the zPosition on the layers (default to 0 for all layers)

2. Set the sublayerTransform to a parent layer with your effect

Example:

CATransform3D perspective = CATransform3DIdentity;
perspective.m34 = -1./EYE_Z; // uses the zPosition for changing the scale of each layer

CALayer* parent = [CALayer layer];
parent.sublayerTransform = perspective;

blueLayer.zPosition = -100;
[layer addSublayer:blueLayer];

grayLayer.zPosition = 100;
[layer addSublayer:grayLayer];

// now blue and gray layer will appear to have different sizes even if their model layer
// has the same size.

Animation timing

Both CAAnimation and CALayer use the CAMediaTiming protocol, a few properties:

• beginTime

• repeatCount, repeatDuration (use one or the other)

• duration

• autoreverses

• fillMode

Animation notifications

• Explicit animations have a delegate:

myAnimation.delegate = self;
...

- (void)animationDidStart:(CAAnimation *)theAnimation {
  ...
}

- (void)animationDidStop:(CAAnimation *)theAnimation finished:(BOOL)flag {
  ...
}

• Implicit animations can have a completion block via CATransaction:

// Always declare the transaction before the implicit animation
[CATransaction setCompletionBlock:^{
  // block that runs when animations have completed
  [CATransaction setDisableActions:YES];
  [layer removeFromSuperlayer];
}];

layer.opacity = 0;
layer.position = CGPointMake (2000, layer.position.y);

Presentation vs model

• Layer properties do not reflect active animations

• Use -presentationLayer method to get screen values

  • Creates a temporary layer with animations applied

  • Asking for sublayers returns presentation versions

• Useful for from values of animations

anim = [CABasicAnimation animationWithKeyPath:@”borderColor”];
anim.fromValue = [[layer presentationLayer] borderColor];

• And for hit-testing against real geometry

hitLayer = [[[layer presentationLayer] hitTest:p] modelLayer];

Replicators

• CAReplicatorLayer creates a specified number of sublayer copies with varying geometric, temporal, and color transformations.

• You control the number of copies via its instanceCount property

• by default all copies will sit on top of each other with all the same properties, we can change that by setting one (or more) of the following CAReplicatorLayer properties (note that they’re all also animatable):

  • instanceTransform: CATransform3D, instanceColor: CGColor?, instanceRedOffset: Float, instanceGreenOffset: Float, instanceBlueOffset: Float, instanceAlphaOffset: Float

Particles

• done thanks to CAEmitterLayer

• can use them from iOS 5 and later

• can be used to mock water, smoke, fire, etc

How to:

• set the emitterShape property to set the shape of the emitter (line, circle etc)

• set the emitterPosition property to set the center of the particle emitter

• set the emitterMode property to specify where the particles are emitted from

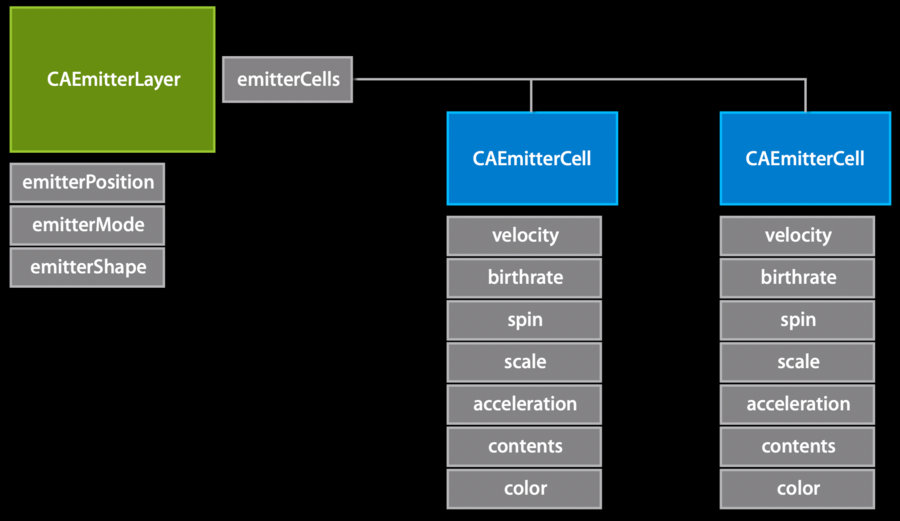

• set the emitterCells property with an array of CAEmitterCell, which represent characteristics of your particles (how do they look and behave)
